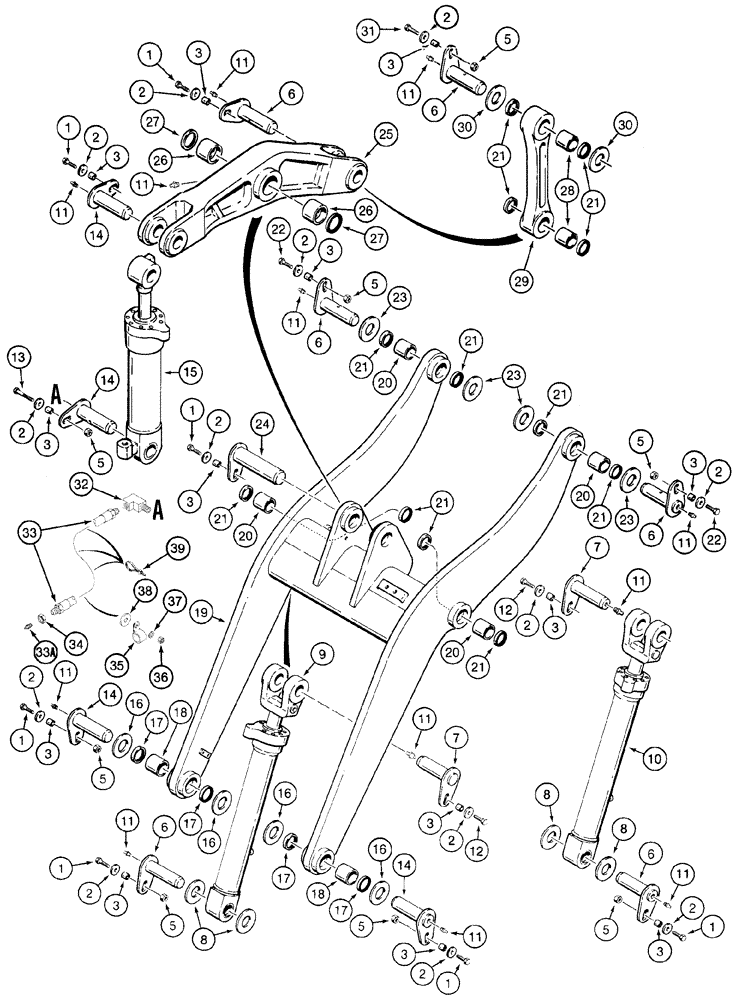

Запчасти Case 721C (09-06) - FRAME - LOADER LIFT WITH EXTENDED REACH (09) - CHASSIS

XR Loader

1шт.

1

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

7шт.

2

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10-13шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Pin Mounting

10-13шт.

5

231-14110

LOCK NUT,5/8"-11, GB

5-8шт.

6

L128351

PIVOT PIN

249 mm (9-13/16 in)

3-6шт.

7

L127118

HANDLED SHAFT

229 mm (9 in)

2шт.

8

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

4шт.

9

280707A1

CYLINDER ASSY.

127 IDx834 mm strk, Lift Cylinder, Left Hand, See Figure 08-32

1шт.

10

280706A1

CYLINDER ASSY.

127 ID x 834 mm strk, Lift Cylinder, Right Hand, See Figure 08-32

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

10-11шт.

12

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

13

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

14

L118674

PIVOT PIN

255 mm (10 in)

4шт.

15

125873A1

CYLINDER ASSY.

165 ID x 544 mm strk, Bucket Tilt, Extended Reach, See Figure 08-34

1шт.

16

L118834

WASHER,83.8mm ID x 152mm OD x 3.7mm Thk

4шт.

17

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

Loader Lift Frame, At Chassis

4шт.

L128612

ARM

Extended Reach, Loader Lift, Incl. 18 - 20

1шт.

18

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

Loader Lift Frame, At Chassis

2шт.

19

NSS

NOT SOLD SEPARAT

Frame

1шт.

20

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

Loader Lift Frame, At Lift Cylinder And Bucket

4шт.

21

L128724

SEAL

12шт.

22

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

If used

2шт.

23

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

If Used

1шт.

24

L118672

PIVOT PIN

345 mm (13-5/8 in)

1шт.

232194A1

LINKAGE YOKE

Loader Bucket, Incl. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

Bellcrank

1шт.

26

L118709

BUSHING,95.42mm ID x 111.25mm OD x 82mm L

Bellcrank

2шт.

27

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

Bellcrank Pivot

2шт.

L118759

PITMAN ASSY.

Bucket Dump, Incl. 28, 29

1шт.

28

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

2шт.

29

NSS

NOT SOLD SEPARAT

Link

1шт.

30

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

If Used

2шт.

31

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

If used

1шт.

32

328082A1

ELBOW

1/8 PT, Special

1шт.

33

313681A1

HOSE ASSY.

2080 mm (81-7/8 in), Incl. 33A

1шт.

33a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

34

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

35

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

36

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

38

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
