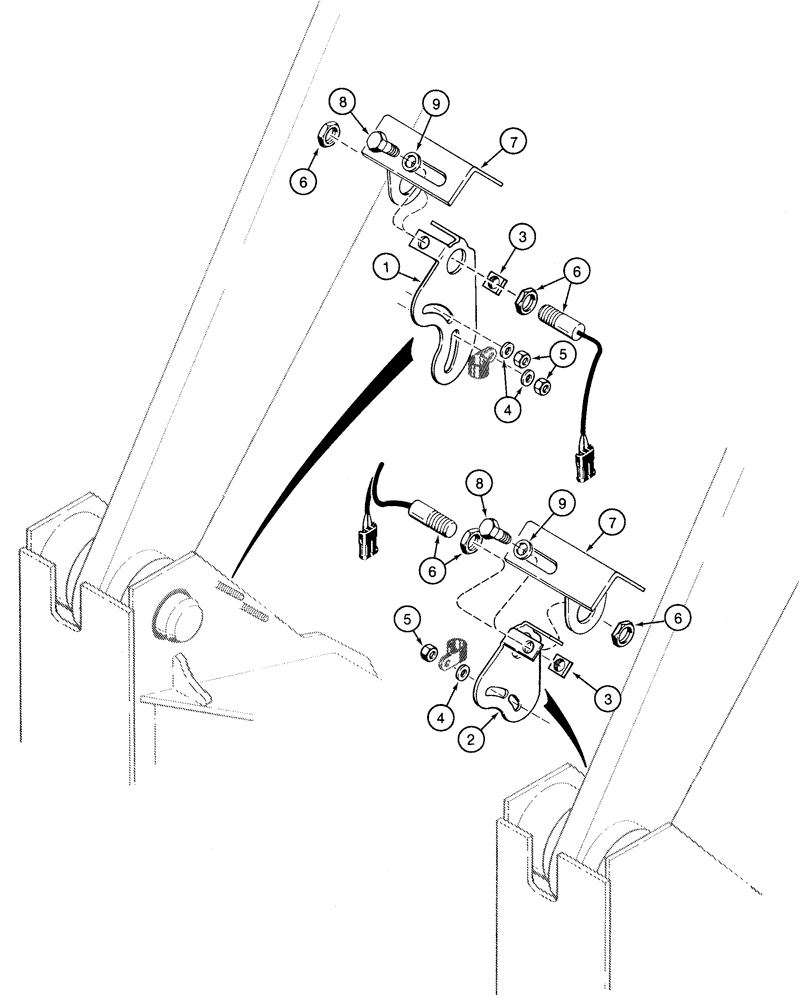

Запчасти Case 721C (09-04) - CONTROL, LOADER BUCKET HEIGHT - RETURN-TO-TRANSPORT (09) - CHASSIS

XT Loader

1шт.

1

115677A1

LARGE PLATE

PLATE, LARGE Mounting, Proximity Switch, Left Hand

1шт.

2

115678A1

LARGE PLATE

PLATE, LARGE Mounting, Proximity Switch, Right-hand, Right Hand

1шт.

3

131-856

SPRING NUT,Ret, J, 3/8"-16

4шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

5

231-1446

NUT,3/8" - 16, Gr 5

4шт.

6

1546498C1

SWITCH

Height Control, Return To Transport, Incl. Hardware

2шт.

7

116212A1

COVER

Proximity Switch, Right-hand

2шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.
