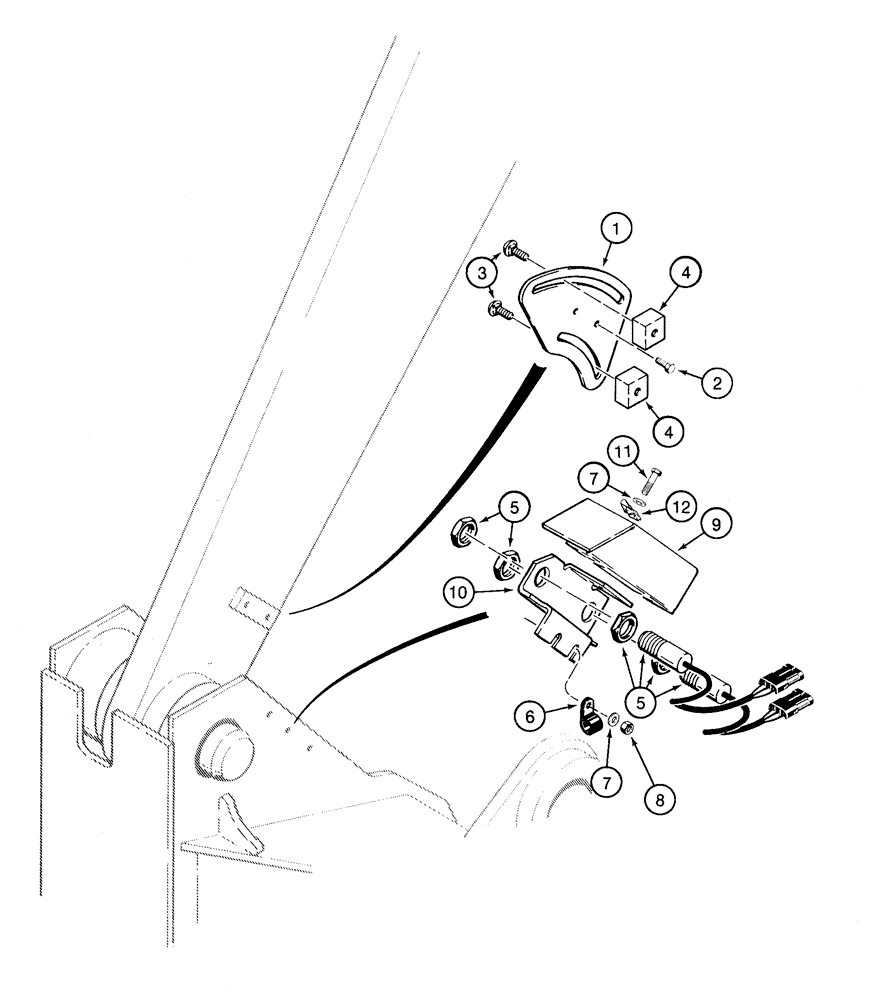

Запчасти Case 721C (09-03) - CONTROLS - BUCKET HEIGHT AND RETURN-TO-TRANSPORT (09) - CHASSIS

Z-Bar Loader

1шт.

1

L124660

PLATE

Actuator Switches

1шт.

2

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

2шт.

3

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

2шт.

4

L125976

SWITCH

Proximity Switch

2шт.

5

1546498C1

SWITCH

Height Control, Return To Transport, Incl. Hardware

2шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

L125258

COVER

Proximity Switch

1шт.

10

L128899

SUPPORT

Mounting, Proximity Switch

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

12

131-856

SPRING NUT,Ret, J, 3/8"-16

2шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
