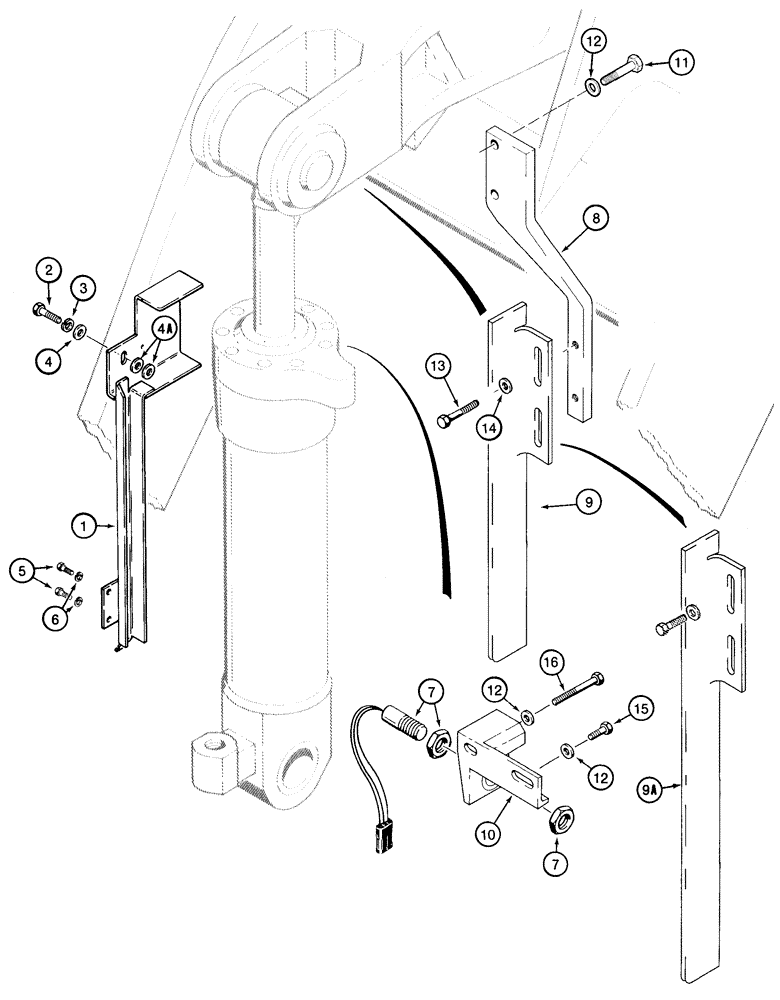

Запчасти Case 721C (09-01) - CONTROL - RETURN-TO-DIG (09) - CHASSIS

Z-Bar Loader

1шт.

1

L127182

PROTECTOR

Harness, Return To Dig

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

4

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

1шт.

4a

95-81162

WASHER,0.56" ID x 1.88" OD x 0.13" Thk

2шт.

5

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

1546497C1

SWITCH

Return To Dig, Includes Hardware

1шт.

8

L128809

SUPPORT

1шт.

9

309774A1

SUPPORT

Sensing, Return To Dig, Models With Standard Reach

1шт.

9a

L303368

INDICATOR

Sensing, Return To Dig, Models With Extended Reach

1шт.

10

L125983

SUPPORT

Mounting, Proximity Switch

1шт.

11

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

14

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

15

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

16

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.
