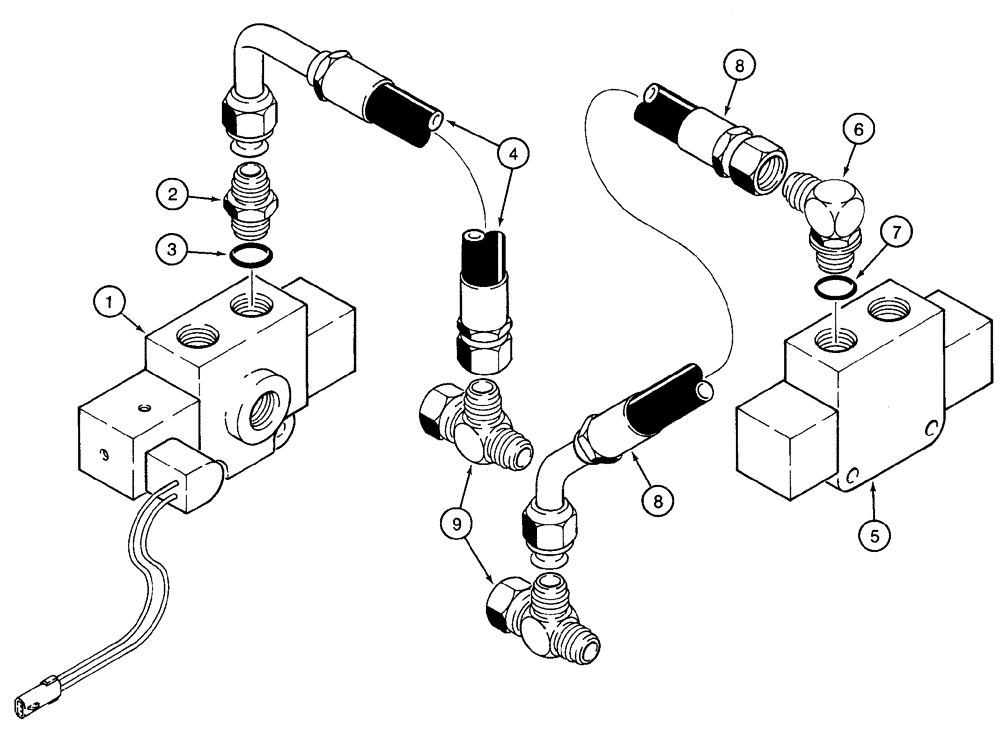

Запчасти Case 721C (08-60) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

Master and Directional Valves to Lift Tubes

1шт.

All North American Loaders

1шт.

European Z-Bar Loaders Only

1шт.

1

107866A1

VALVE

Master Directional, With Electrical Connector, See Figure 08-61

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

132977A1

HOSE ASSY.

510 mm (20 in), To Right Hand Rod End Cylinder Tube; See Figure 08-07 For Lift Tubes Used On Models With Ride Control.

1шт.

5

106488A1

VALVE

Directional Control, See Figure 08-62

2шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

132979A1

HOSE ASSY.

400 mm (15-3/4 in), Directional Valve To Right Hand Closed End Cylinder Tube; See Figure 08-07 For Lift Tubes Used On Models With Ride Control.

1шт.

9

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

2шт.
