(08-56) - VALVE ASSY - COMBINATION

Запчасти Case 721C (08-56) - VALVE ASSY - COMBINATION (08) - HYDRAULICS

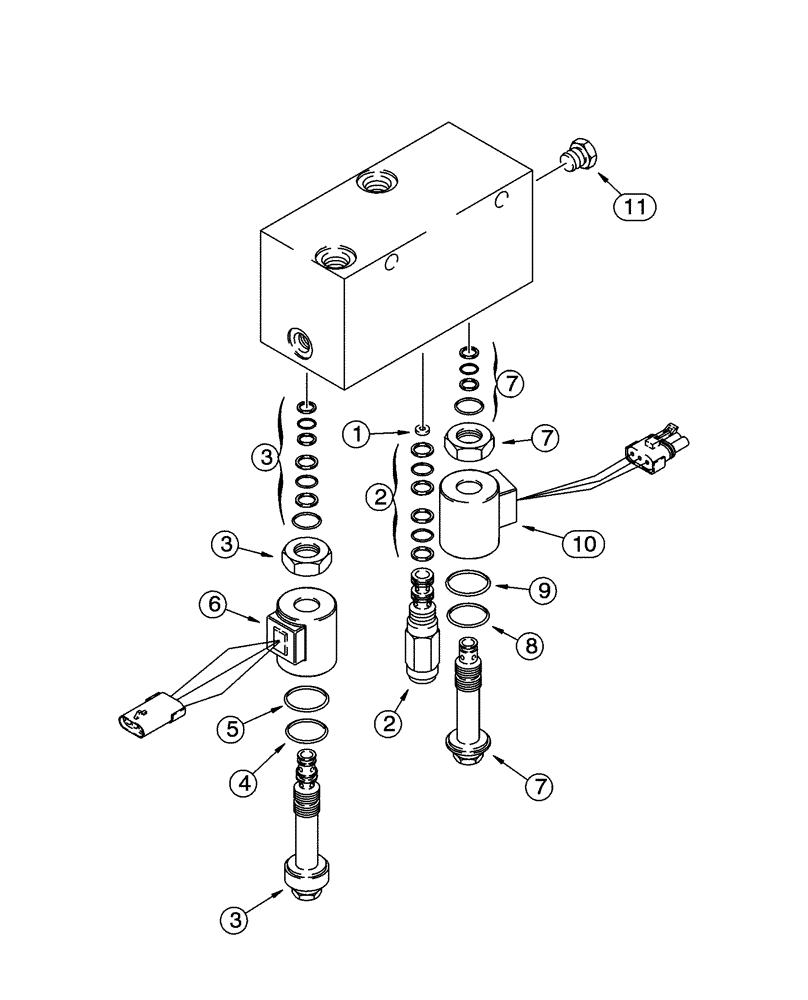

Схема запчастей Case 721C - (08-56) - VALVE ASSY - COMBINATION (08) - HYDRAULICS
3
8
6
3
2
7
7
2
4
11
3
10
1
9
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

198998A3

VALVE

Combination Valve, Incl. 1-12, If Used

1шт.

NSS

NOT SOLD SEPARAT

Housing

1шт.

1

294787A1

JET

1шт.

2

120470A2

VALVE

Incl. 120469A1, Component Parts Not Serviced Separately, For Service Of External Seals, Order 120469A1

1шт.

120469A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

3

329479A1

VALVE

3-Way, Component Parts Not Serviced Separately, Incl. 329483A1, 332377A1, 332378A1

1шт.

329483A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

4

332377A1

O-RING

Outer

1шт.

5

332378A1

O-RING

Center

1шт.

6

329481A1

COIL ASSY.

With Female Connector

1шт.

7

329480A1

VALVE

2-Way, Component Parts Not Serviced Separately, Incl. 329484A1, 332377A1, 332378A1

1шт.

329484A1

SEAL KIT

Seal, Component Parts Not Serviced Separately

1шт.

8

332377A1

O-RING

Outer

1шт.

9

332378A1

O-RING

Center

1шт.

10

329482A1

COIL

With Male Connector

1шт.

11

336680A1

PLUG

1шт.

12

336791A1

VALVE

Not Illustrated, Component Parts Not Serviced Separately, Incl. 336792A1

1шт.

336792A1

SET OF PARTS

Seal, Component Parts Not Serviced Separately

1шт.
