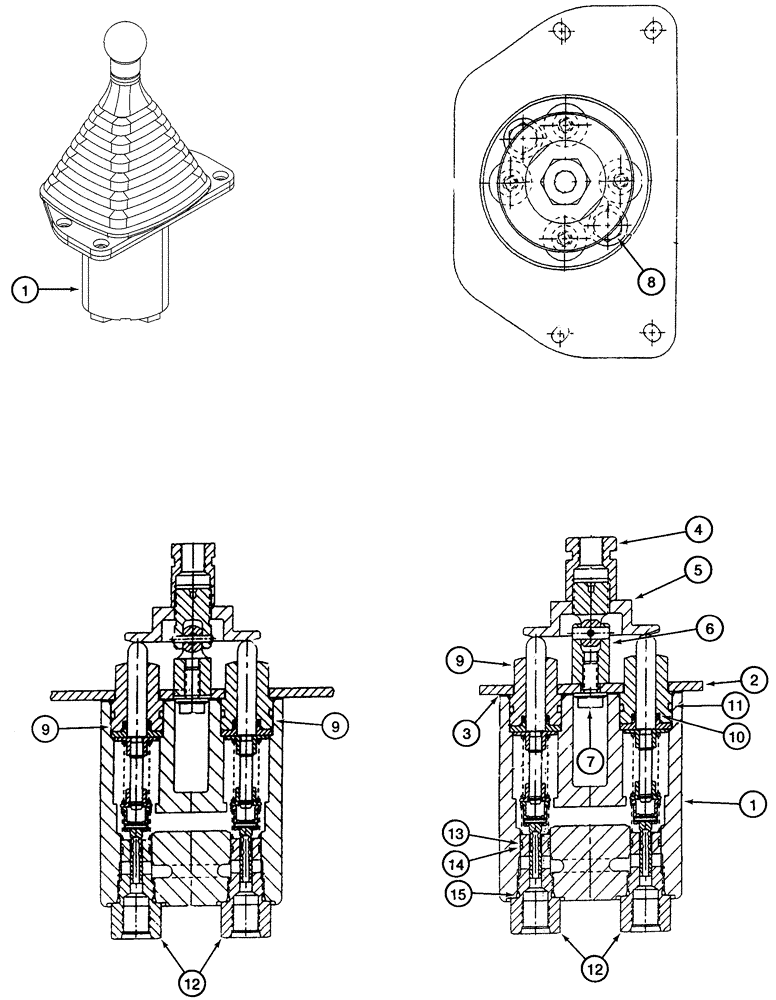

Запчасти Case 721C (08-55) - VALVE ASSY - REMOTE CONTROL, AUXILIARY (08) - HYDRAULICS

Single Lever With Two Spool Valve

1шт.

North America Only

1шт.

240921A1

VALVE

Remote Control, Two Spool, Incl. 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

323775A1

LARGE PLATE

PLATE, LARGE

1шт.

3

323779A1

GASKET,0.46mm Thk

Gasket

1шт.

4

323771A1

SPECIAL NUT

1шт.

5

323774A1

PIVOT PLATE

1шт.

6

323773A1

COUPLING JOINT

1шт.

7

323787A1

SERRATED SCREW

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

9

323768A1

PLUNGER

Cartridge, Component Parts Not Serviced Separately, For Service of External O-Ring and Spool Seal, Order 323915A1 Kit, Incl. 323915A1, 10, 11

4шт.

323915A1

SET OF PARTS

Seal, Incl. 10, 11

1шт.

10

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

Spool

1шт.

11

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

12

323766A1

VALVE

Component Parts Not Serviced Separately, For Service of External Seals, Order 323913A1 Kit, Incl. 323913A1, 13-15

4шт.

323913A1

SEAL KIT

Seal, Incl. 13-15

1шт.

13

323921A1

RING

1шт.

14

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

15

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.
