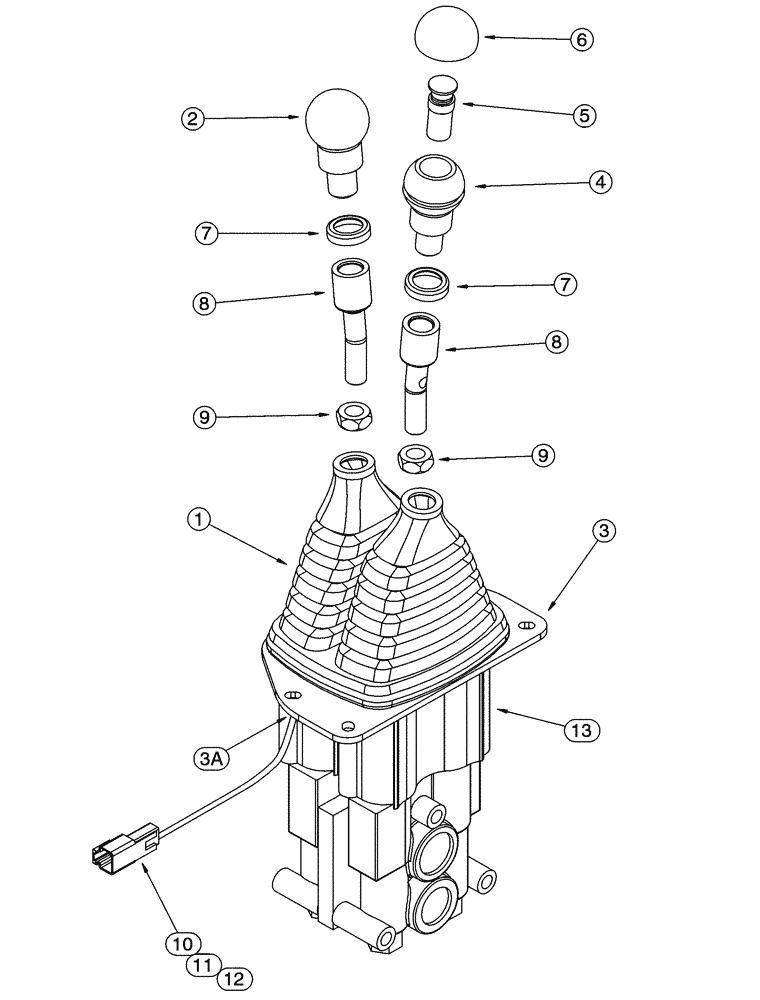

Запчасти Case 721C (08-48) - VALVE ASSY - REMOTE CONTROL, DUAL LEVER (08) - HYDRAULICS

Dual Lever With Two Spool Valve

1шт.

If Used

1шт.

292086A1

VALVE

Dual Lever Remote, Incl. 1-13

1шт.

1

275861A1

BOOT

1шт.

2

291477A1

BALL KNOB

1шт.

3

316777A1

GASKET

1шт.

3a

330136A1

HEATER TUBE,4.75 mm ID

Heat Shrink, Kickdown Switch Wires

1шт.

4

291478A1

BALL KNOB

1шт.

5

291475A1

IGNITION SWITCH

Push Button, Kickdown

1шт.

6

291476A1

BOOT

Switch

1шт.

7

291474A1

WASHER

2шт.

8

256071A1

PLUNGER

2шт.

9

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

11

225318C1

ELEC CONNECTOR,2 Pin

Locking

1шт.

12

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

2шт.

13

291946A1

VALVE

Remote Control, Two Spool, See Figure 08-49

1шт.
