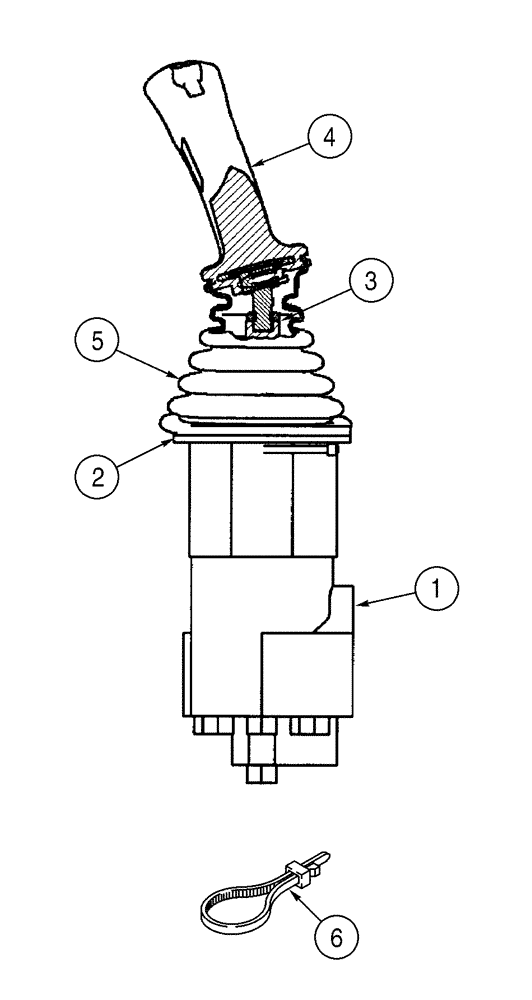

Запчасти Case 721C (08-46A) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS

If Used

1шт.

REF

INSTRUCTION

Also used with 299238A1 single lever with two spool valve. When combined, they form a dual lever four spool valve combination.

1шт.

419639A1

VALVE

Single Lever Remote, Incl. 1 - 6

1шт.

1

428373A1

VALVE

Remote Control, See Figure 08-47

1шт.

2

316777A1

GASKET

1шт.

3

829-4412

NUT,Thin, M12 x 1.75, Cl 5

1шт.

4

428265A1

HANDLE

1шт.

87588665R

REMAN-JOYSTICK

721C, Reman for New P/N 428265A1

1шт.

87588665C

CORE-JOYSTICK

Return Number

1шт.

5

414321A1

BOOT

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

Single Lever With Two Spool Valve

1шт.
