(08-46) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER

Запчасти Case 721C (08-46) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS

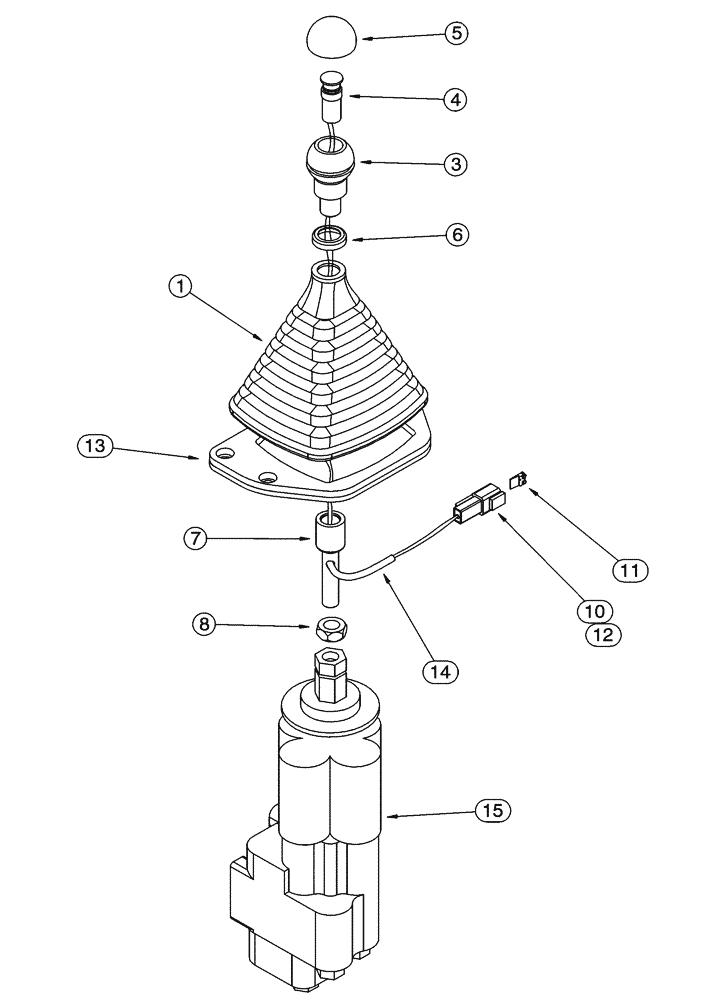

Схема запчастей Case 721C - (08-46) - VALVE ASSY - REMOTE CONTROL, SINGLE LEVER (08) - HYDRAULICS
10
6
8
5
15
7
3
14
1
12
13
11
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Single Lever With Two Spool Valve

1шт.

North America Only

1шт.

If Used

1шт.

292085A1

VALVE

Single Lever Remote, Incl. 1-15; Also used with 299238A1 single lever with two spool valve. When combined, they form a dual lever four spool valve combination.

1шт.

1

275860A1

BOOT

1шт.

3

291478A1

BALL KNOB

1шт.

4

291475A1

IGNITION SWITCH

Push Button, Kickdown

1шт.

5

291476A1

BOOT

Switch

1шт.

6

291474A1

WASHER

1шт.

7

299184A1

PLUNGER

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

11

225318C1

ELEC CONNECTOR,2 Pin

1шт.

12

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

2шт.

13

316777A1

GASKET

1шт.

14

330134A1

HEATER TUBE,4.75 mm ID

Heat Shrink, Kickdown Switch Wires

1шт.

15

275924A1

VALVE

Remote Control, Two Spool, See Figure 08-47

1шт.
