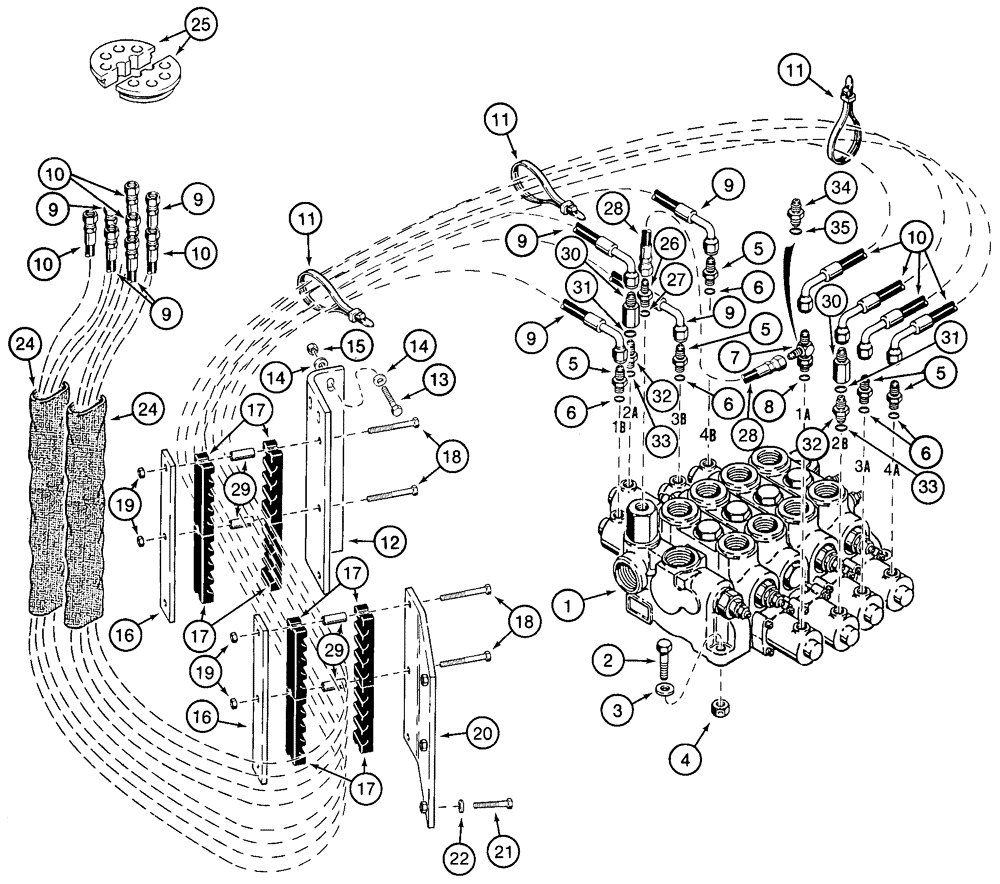

Запчасти Case 721C (08-44) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

Hose Grommet to Four Spool Valve

1шт.

North America Only

1шт.

1

REF

INSTRUCTION

Valve, Control, See Figure 08-04, 08-05

1шт.

2

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

3

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

3шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

At Port(s) 1B, 3A, 3B, 4A, 4B, Incl. 6

5шт.

7

L124527

TEE

At Port(s) 1A, Includes 8, Z-Bar or XR Loader

1шт.

9

292956A1

HOSE ASSY.

2680 mm (105-5/8 in), Hose Grommet to Ports 1B, 2A, 3B and 4B

4шт.

10

292957A1

HOSE ASSY.

3670 mm (144-1/2 in), Hose Grommet to Ports 1A, 2B, 3A and 4A

4шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

12

114654A1

BRACKET

Bolts To Front Chassis

1шт.

13

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

16

L127357

LARGE PLATE

PLATE, LARGE

2шт.

17

L124271

FIXING BRACKET

8шт.

18

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

6шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

20

294158A1

SUPPORT

Bolts To Rear Frame

1шт.

21

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

22

892-11010

LOCK WASHER,M10

3шт.

24

S120426

TUBE

2шт.

25

232388A1

GROMMET

Hose Separator

2шт.

26

L129691

FITTING

Incl. 27, Z-Bar or XR Loader

1шт.

28

L128977

TUBE ASSY.

510 mm (20-7/8 in), Inlet and Outlet Section to Tee at Port 1A, Z-Bar or XR Loader

1шт.

29

L126936

SPACER

6шт.

L110143

VALVE

Incl. 30-33, At Port(s) 2A, 2B

2шт.

30

NSS

NOT SOLD SEPARAT

Body

1шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 33

1шт.

34

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Or, Incl. 35, At Port(s) 1A, XT Loader

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
