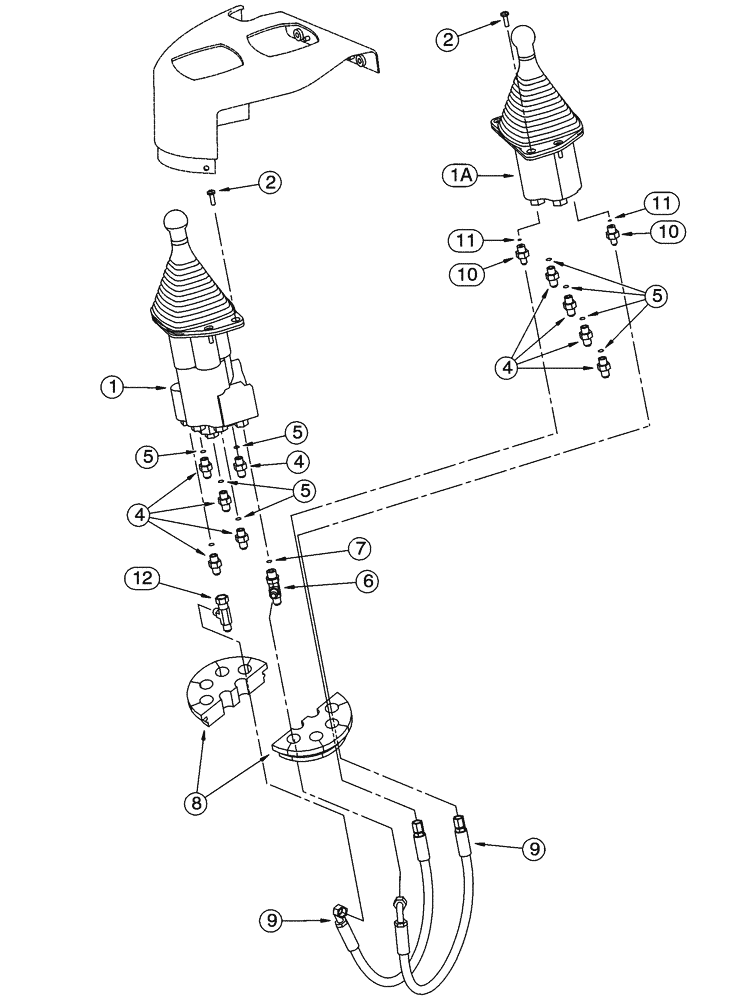

Запчасти Case 721C (08-43) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

Dual Lever With Four Spool Valve

1шт.

North America Only

1шт.

If Used

1шт.

1

292085A1

VALVE

Single Lever Remote, Two Spool, See Figure 08-46

1шт.

1a

299238A1

VALVE

Auxiliary, Single Lever Remote, Two Spool, See Figure 08-54

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

8шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

9шт.

6

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 7

1шт.

8

232388A1

GROMMET

See Figure 08-44 for a continuation of the circuit from the hose grommet to the loader valve.

2шт.

9

300016A1

HOSE ASSY.

483 mm (19-1/16 in)

2шт.

10

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 11

2шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
