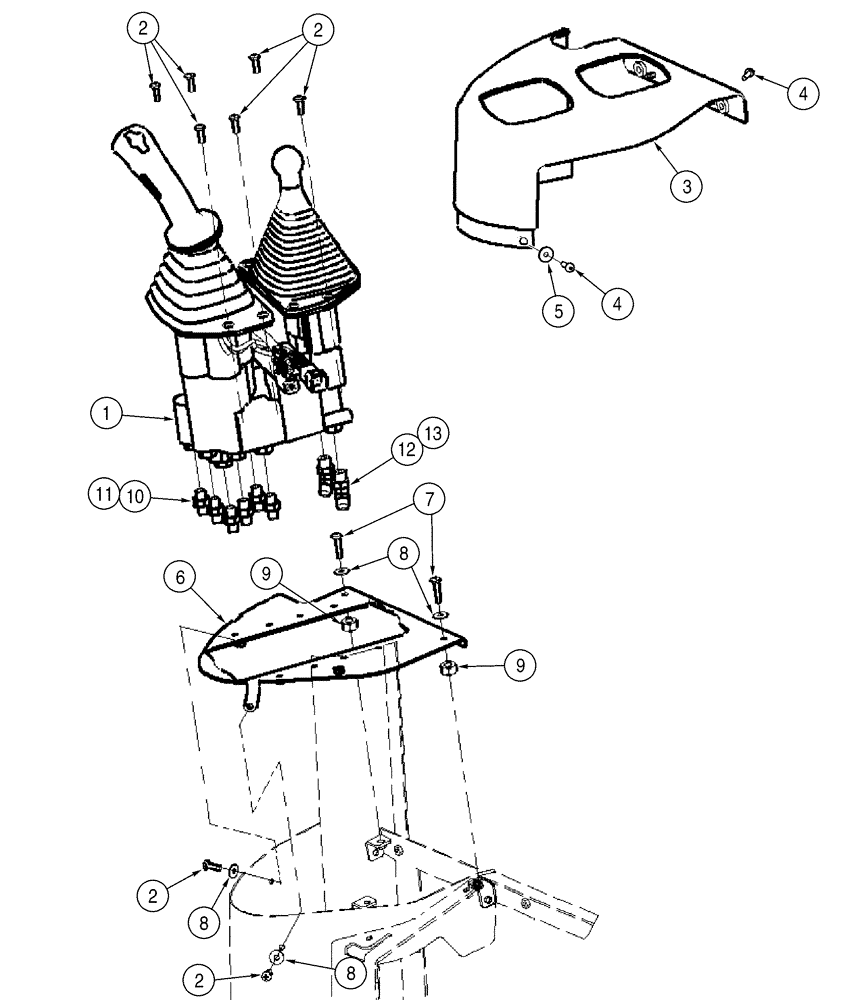

Запчасти Case 721C (08-40A) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

Dual Lever With Three Spool Valve

1шт.

If Used

1шт.

1

429059A1

VALVE

Dual Lever Remote, See Figure 08-50A

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

8шт.

3

400485A1

COVER

1шт.

4

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

5

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

6

418184A1

TOP

1шт.

7

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

9

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

2шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 11

6шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 13

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
