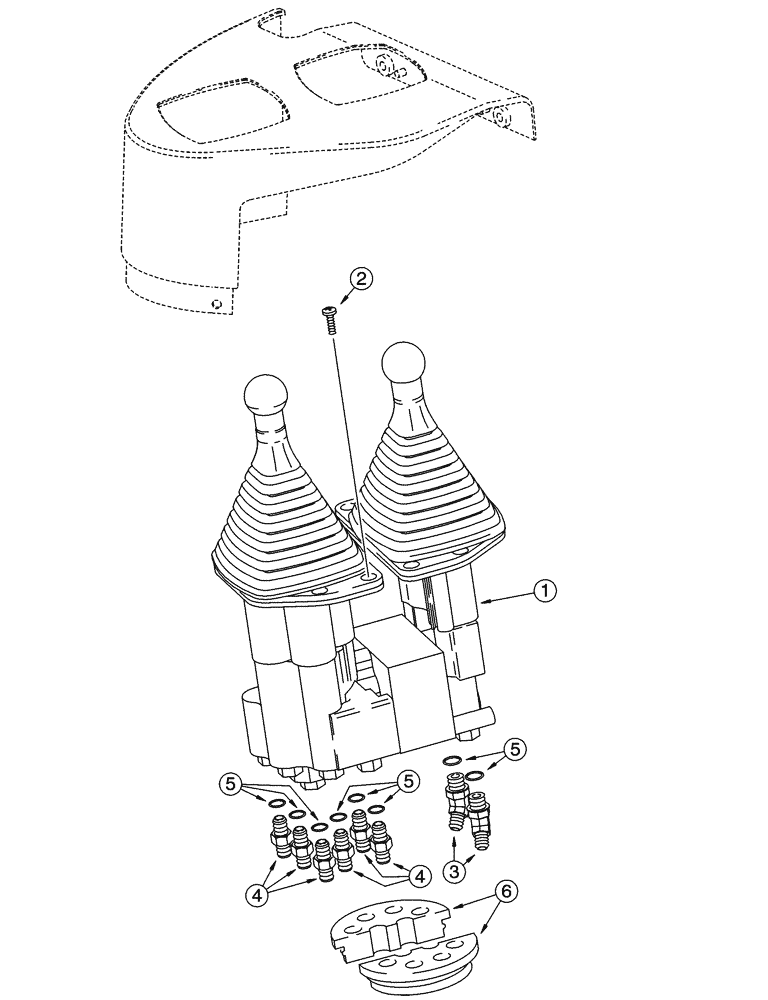

Запчасти Case 721C (08-40) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

Dual Lever With Three Spool Valve

1шт.

North America and Europe

1шт.

If Used

1шт.

1

291087A1

VALVE

Dual Lever Remote, See Figure 08-50

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 5

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

6шт.

6

232388A1

GROMMET

See page 08-42 for a continuation of the circuit from the hose grommet to the loader valve.

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
