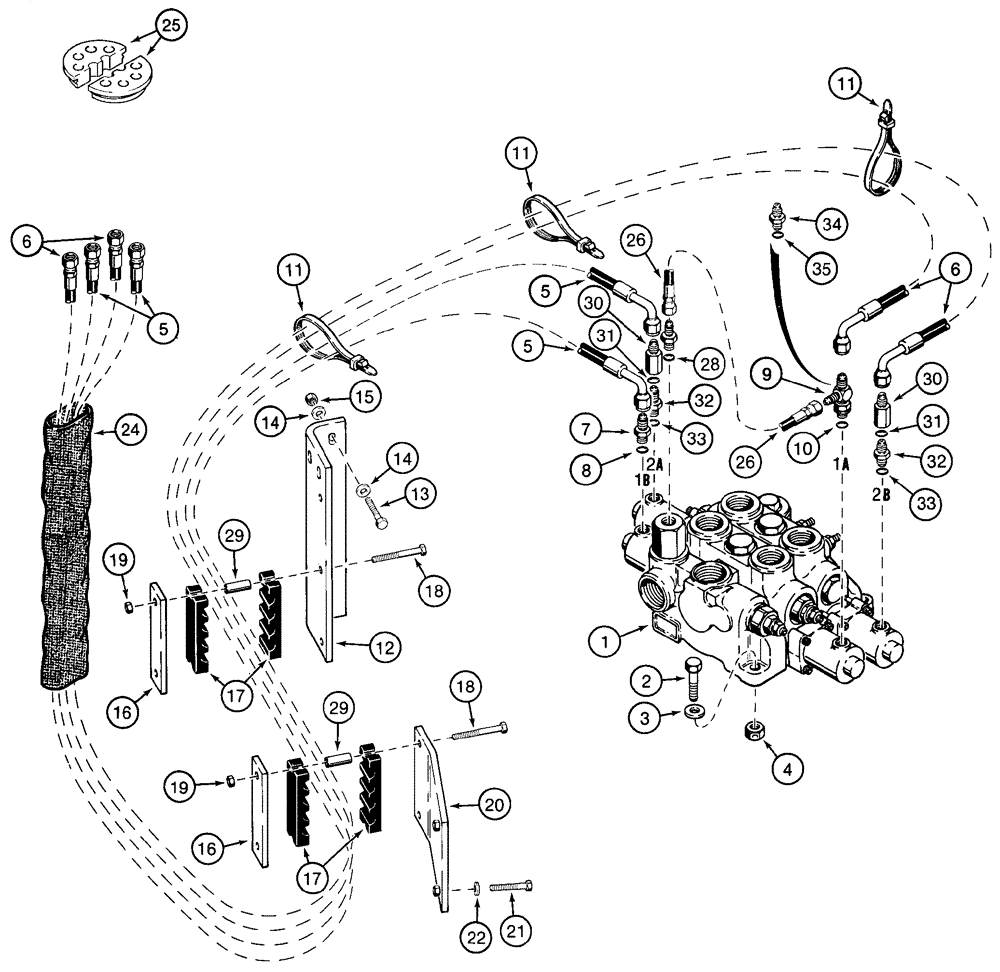

Запчасти Case 721C (08-39) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Hose Grommet to Two Spool Valve
1шт.
North America Only
1шт.
1
REF
INSTRUCTION
Valve, Control, See Figure 08-04, 08-05
1шт.
2
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
3шт.
3
495-21056
WASHER,1/2"
9/16 x 1-3/8 x 7/64
3шт.
4
832-10412
NUT,M12 x 1.75, Cl 8
3шт.
5
292956A1
HOSE ASSY.
2680 mm (105-5/8 in), Hose Grommet to Ports 1B and 2A
2шт.
6
292957A1
HOSE ASSY.
3670 mm (144-1/2 in), Hose Grommet to Ports 1A and 2B
2шт.
7
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
At Port(s) 1B, Incl. 8
1шт.
9
L124527
TEE
At Port(s) 1A, Incl. 10, Z-Bar or XR Loader
1шт.
11
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
1шт.
12
114654A1
BRACKET
Bolts To Front Chassis
1шт.
13
828-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9
3шт.
14
892-11010
LOCK WASHER,M10
Replaces 896-15010
6шт.
15
832-10410
NUT,M10 x 1.5, Cl 8
3шт.
16
L124270
LARGE PLATE
PLATE, LARGE
2шт.
17
L124271
FIXING BRACKET
4шт.
18
827-10070
BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9
4шт.
19
832-10410
NUT,M10 x 1.5, Cl 8
4шт.
20
300614A1
SUPPORT
Bolts To Rear Frame
1шт.
21
828-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9
2шт.
22
892-11010
LOCK WASHER,M10
2шт.
24
S120426
TUBE
1шт.
25
232388A1
GROMMET
Hose Separator
2шт.
26
L128977
TUBE ASSY.
510 mm (20-7/8 in), Inlet and Outlet Section to Tee at Port 1A, Z-Bar or XR Loader
1шт.
27
L129691
FITTING
Incl. 28, Z-Bar or XR Loader
1шт.
29
L126936
SPACER
4шт.
L110143
VALVE
Incl. 30-33, At Port(s) 2A, 2B
2шт.
30
NSS
NOT SOLD SEPARAT
Body
1шт.
32
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 33
1шт.
34
218-5029
HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Or, Incl. 35, At Port(s) 1A, XT Loader
1шт.
8
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
10
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
28
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
31
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
33
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
35
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 37
