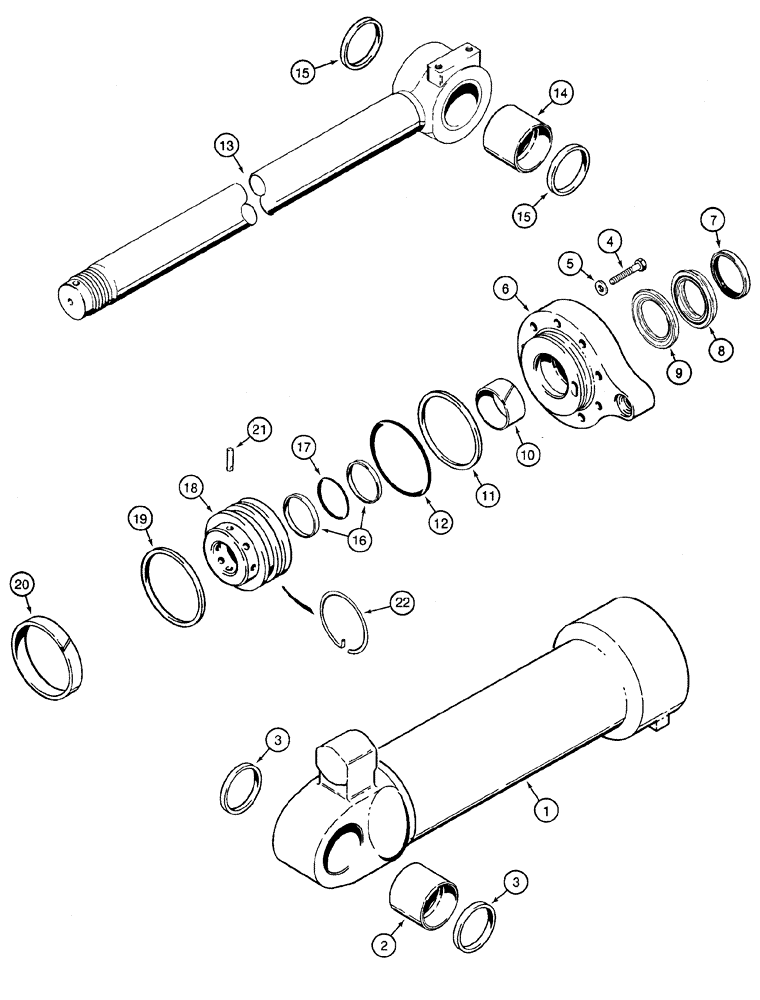

Запчасти Case 721C (08-34) - CYLINDER ASSY - LOADER BUCKET (XR) (08) - HYDRAULICS

XR Loader

1шт.

125873A1

CYLINDER ASSY.

165 ID x 544 mm strk, Bucket, Incl. 1-23

1шт.

1

1343668C2

HYD CYL SLEEVE

Incl. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

3

L104363

WIPER SEAL

2шт.

4

28-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 8

5/8 NF x 3; 8

9шт.

5

S92353

WASHER

9шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Incl. 6-12, Order Components

1шт.

6

1543091C1

GLAND

1шт.

7

D95148

WIPER SEAL

1шт.

1543303C1

SEAL KIT

Seal, Incl. 7-12, 16, 17, 19, 20

1шт.

1542881C1

SEAL KIT

Incl. 8, 9, NSS, Order 1543303C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Rod, NSS, Order 1543303C1 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal, NSS, Order 1543303C1 Seal Kit

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

1шт.

11

G110421

BACK-UP RING,151.81mm ID x 160.95mm OD x 1.9mm Thk

1шт.

12

238-5360

O-RING,0.21" Thk x 5.85" ID, -360, Cl 5, 75 Duro

1шт.

13

L302890

PISTON ROD

76 mm dia, Incl. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

15

L104363

WIPER SEAL

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

2шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

18

1980351C2

JACK PISTON

No Longer Used, Order 377647A1

1шт.

18

377647A1

PISTON

Replaces 1980352C1

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

1шт.

20

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

1шт.

21

G106602

LOCK PIN

1шт.

22

1980352C1

RING

1шт.

1543303C1

SEAL KIT

Seal, Incl. 7-12, 16, 17, 19, 20

1шт.
