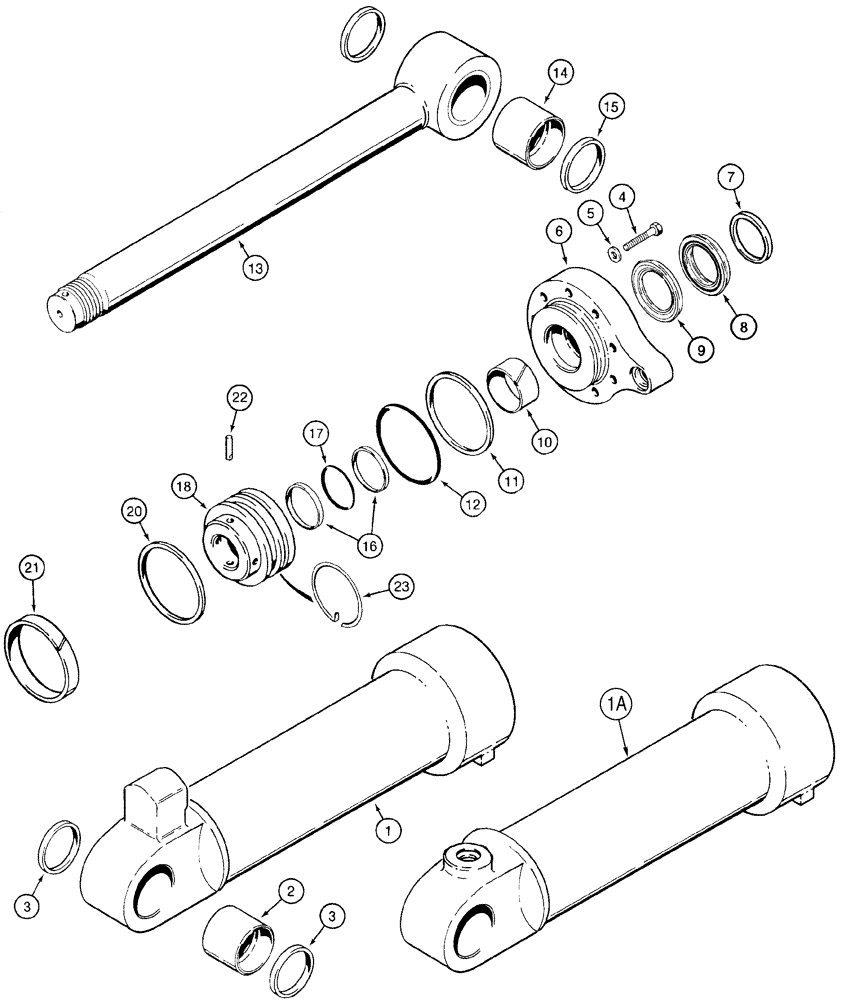

Запчасти Case 721C (08-33) - CYLINDER ASSY - LOADER BUCKET (Z BAR) (08) - HYDRAULICS

Z-Bar Loader

1шт.

308986A1

CYLINDER ASSY.

165 ID x 544 mm strk, Bucket, Incl. 1-23, No Longer Available, Order 349033A1

1шт.

349033A1

CYLINDER ASSY.

165 ID x 544 mm strk, Bucket, Incl. 1-23, Replaces 308986A1

1шт.

1

1343668C2

HYD CYL SLEEVE

Incl. 2, Used With 308986A1

1шт.

1a

348213A1

HYD CYL SLEEVE

Incl. 2, Used With 349033A1

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

3

L104363

WIPER SEAL

2шт.

4

28-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 8

5/8 NF x 3; 8

9шт.

5

S92353

WASHER

9шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Incl. 6-12, Order Components

1шт.

6

1543091C1

GLAND

1шт.

7

D95148

WIPER SEAL

1шт.

1542881C1

SEAL KIT

Incl. 8, 9, NSS, Order 1543303C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Rod, NSS, Order 1543303C1 Seal Kit

1шт.

1543303C1

SEAL KIT

Seal, Incl. 7-12, 16, 17, 20, 21

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal, NSS, Order 1543303C1 Seal Kit

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

1шт.

11

G110421

BACK-UP RING,151.81mm ID x 160.95mm OD x 1.9mm Thk

1шт.

12

238-5360

O-RING,0.21" Thk x 5.85" ID, -360, Cl 5, 75 Duro

1шт.

13

308987A1

PISTON ROD

76 mm dia, Incl. 14, Used With, 3089986A1

1шт.

13

348219A1

PISTON ROD

76 mm dia, Incl. 14, Used With 349033A1

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

15

L104363

WIPER SEAL

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

2шт.

17

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

18

1980351C2

JACK PISTON

1шт.

20

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

1шт.

21

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

1шт.

22

G106602

LOCK PIN

1шт.

23

1980352C1

RING

1шт.

1543303C1

SEAL KIT

Seal, Incl. 7-12, 16, 17, 20, 21

1шт.
