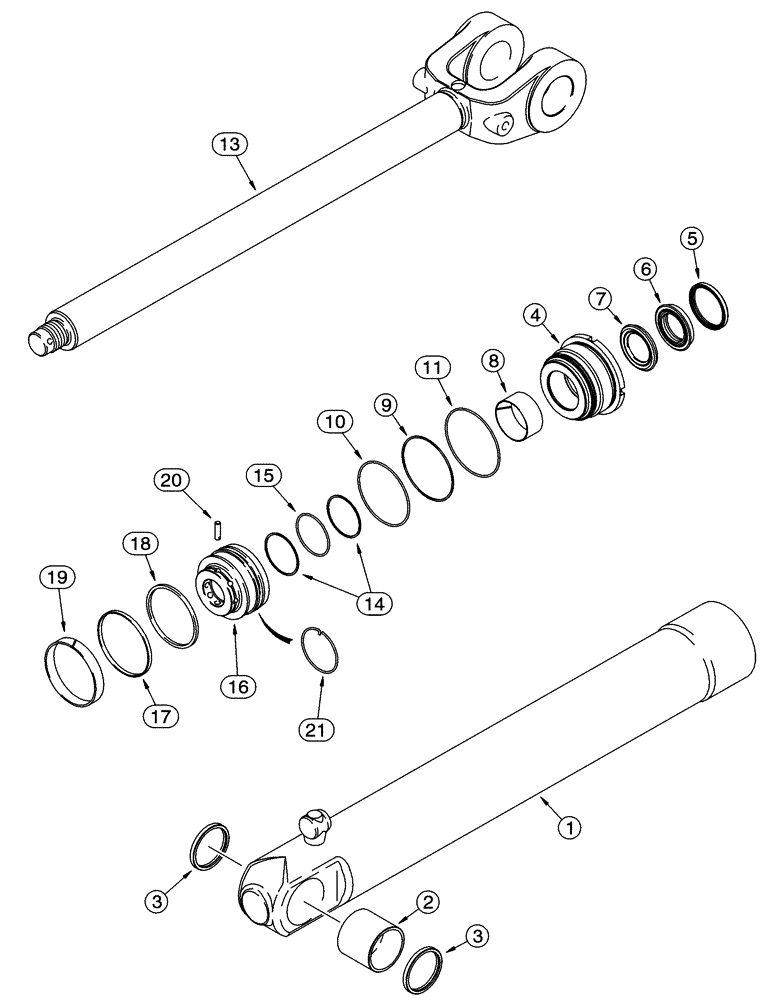

Запчасти Case 721C (08-32) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

280706A1

CYLINDER ASSY.

127 ID x 834 mm strk, Lift, Right Hand, Incl. 1-21

1шт.

280707A1

CYLINDER ASSY.

127 IDx834 mm strk, Lift, Left Hand, Incl. 1-21

1шт.

1

280702A1

HYD CYL SLEEVE

Right Hand, Incl. 2, 3

1шт.

1a

280703A1

HYD CYL SLEEVE

Left Hand, Incl. 2, 3

1шт.

2

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

1шт.

3

D95148

WIPER SEAL

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Incl. 4-11, Order Components

1шт.

4

198110A1

GLAND

1шт.

5

D95148

WIPER SEAL

1шт.

1543305C1

SEAL KIT

Seal, Incl. 5-10, 14, 15, 17-19

1шт.

1542881C1

SEAL KIT

Incl. 6, 7, NSS, Order 1543305C1 Seal Kit

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Rod, NSS, Order 1543305C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal, NSS, Order 1543305C1 Seal Kit

1шт.

8

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

10

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

11

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

13

199952A1

PISTON ROD

76 mm dia

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

2шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

16

G110368

PISTON

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

19

G102090

RING,127mm OD, Ext

1шт.

20

G106602

LOCK PIN

1шт.

21

G110333

CIRCLIP

1шт.

1543305C1

SEAL KIT

Seal, Incl. 5-10, 14, 15, 17-19

1шт.
