(08-30) - VALVE ASSY, RELIEF - VALVE ASSY, ANTICAVITATION

Запчасти Case 721C (08-30) - VALVE ASSY, RELIEF - VALVE ASSY, ANTICAVITATION (08) - HYDRAULICS

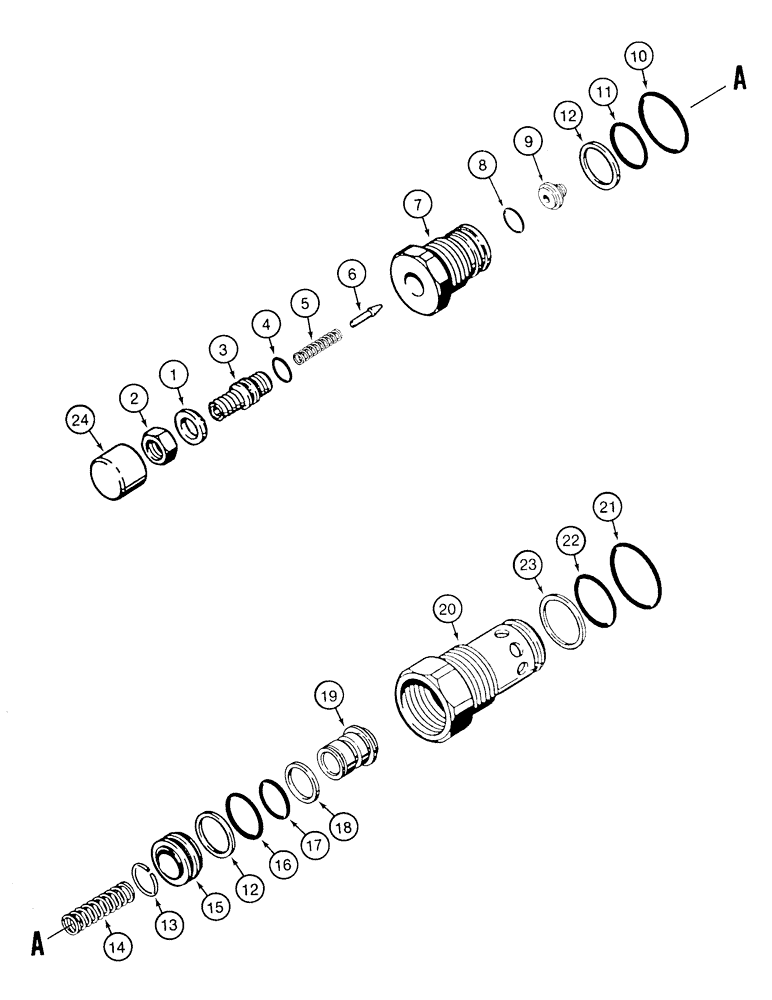

Схема запчастей Case 721C - (08-30) - VALVE ASSY, RELIEF - VALVE ASSY, ANTICAVITATION (08) - HYDRAULICS
12
12
8
14
19
17
24
15
5
1
13
16
6
23
20
18
21
7
9
11
2
3
10
22
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

102210A1

VALVE

Circuit Relief and Anticavitation, With Flat Screen on Poppet, Service Replacement, Incl. 1-24

2-3шт.

102211A1

VALVE

Circuit Relief and Anticavitation, With Flat Screen on Poppet, Production Only, For Service Order 102210A1, See Your Service Manual For Proper Pressure Setting, Incl. 1-24

2-3шт.

1

1978295C1

WASHER

1шт.

2

329-156

JAM NUT,Jam, 3/8"-24, G8

1шт.

3

NSS

NOT SOLD SEPARAT

Screw

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Plunger

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Seat

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Ring

2шт.

13

NSS

NOT SOLD SEPARAT

Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

NSS

NOT SOLD SEPARAT

Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Valve, Relief, Component Parts Not Serviced Separately

1шт.

20

NSS

NOT SOLD SEPARAT

Body

1шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

22

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

23

1978265C1

BACK-UP RING

1шт.

24

NSS

NOT SOLD SEPARAT

Cover, 102211A1 Valve Only

1шт.

1986634C1

SEAL KIT

Seal, Incl. 4, 8, 10-12, 16-18, 21-23

1шт.
