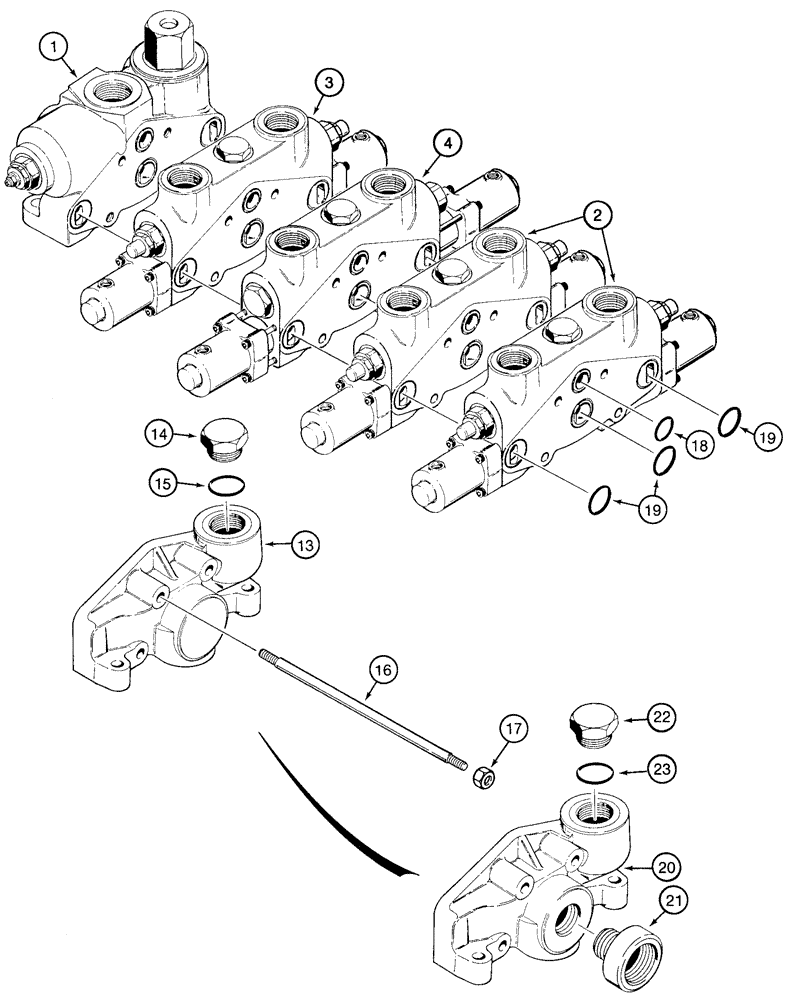

Запчасти Case 721C (08-23) - VALVE ASSY - LOADER CONTROL, FOUR SPOOL (XT) (08) - HYDRAULICS

XT Loader

1шт.

North America Only

1шт.

Valve Assembly 138755A1

1шт.

138755A1

VALVE

Four Spool, Incl. 1-19

1шт.

1

1978263C1

VALVE

Inlet And Outlet, See Figure 08-24

1шт.

2

1978280C1

SECTOR

Auxiliary, See Figure 08-29

2шт.

3

120984A1

SECTOR

Bucket, See Figure 08-27

1шт.

4

190298A1

HYD VALVE SECTION

Lift, See Figure 08-26

1шт.

13

1978278C1

SECTOR

End Cover, Incl. 14, 15

1шт.

14

86512512

PLUG,7/8" - 14 ORB

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

189911A1

TRUSS ROD

4шт.

17

425-107

NUT,7/16"-14, G5

4шт.

120989A1

SEAL KIT

Seal, Incl. 18, 19, Between Sections

1шт.

18

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

5шт.

19

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

15шт.

Power Beyond Kit

1шт.

L36348

KIT

Power Beyond, Incl. 20 - 23

1шт.

20

S301432

COVER

Outlet

1шт.

21

S301433

SLEEVE

1шт.

22

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
