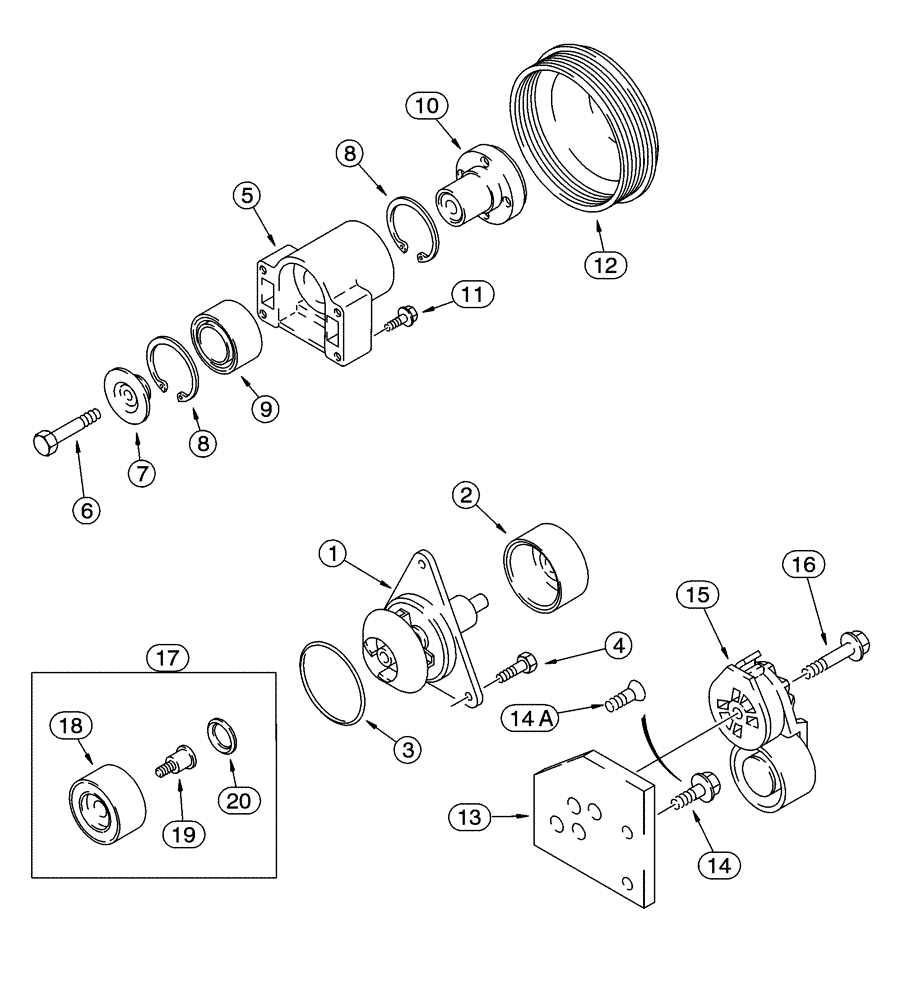

Запчасти Case 721C (02-09) - WATER PUMP SYSTEM (02) - ENGINE

J802975

PUMP, WATER

Water Pump, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

1шт.

4

J934054

FLANGE BOLT

M8 x 28

3шт.

5

J929458

SUPPORT

Incl. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

1шт.

13

J934935

SUPPORT

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

14a

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

15

J934817

BELT TENSIONER

No Longer Used, Order J936203

1шт.

15

J936203

BELT TENSIONER

Replaces J934817

1шт.

16

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

1шт.

17

A77817

KIT

Tensioner, Pulley, Incl. 18 - 20, If Used

1шт.

18

NSS

NOT SOLD SEPARAT

Pulley

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

20

NSS

NOT SOLD SEPARAT

Seal

1шт.
