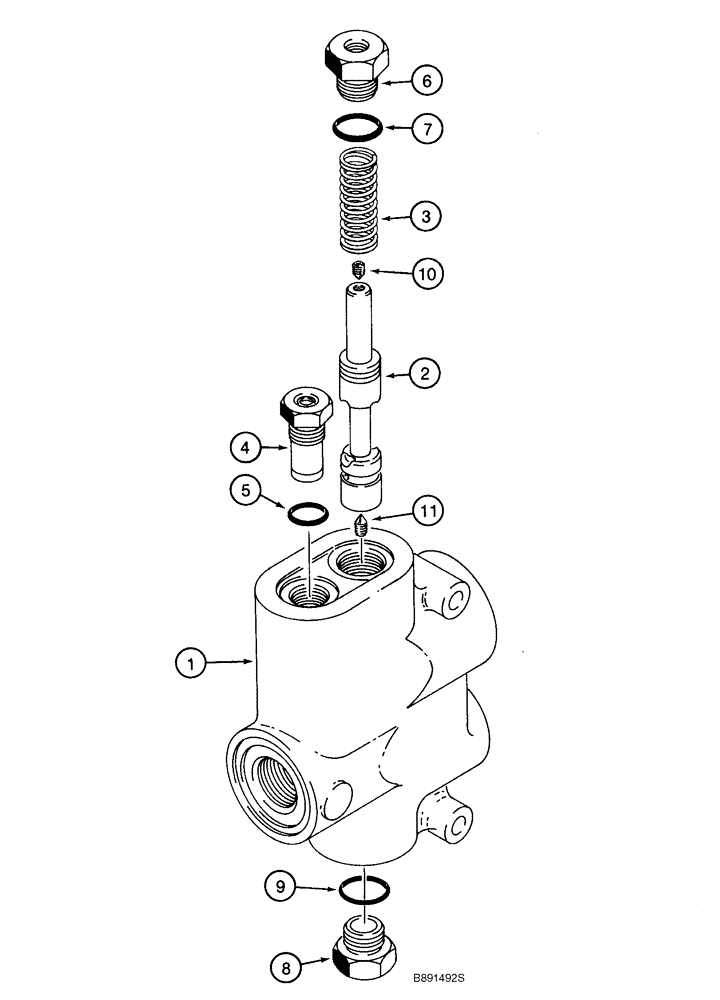

Запчасти Case 721C (08-16) - VALVE ASSY - FLOW CONTROL (08) - HYDRAULICS

L126106

VALVE

Flow Control, Incl. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

S114008

SPRING

1шт.

S113025

CARTRIDGE

Incl. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Cartridge, Component Parts Not Serviced Separately

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

S300790

FITTING

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

86512512

PLUG,7/8" - 14 ORB

Incl. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

S300791

SCREW

Upper

1шт.

11

S300792

SCREW

Lower

1шт.
