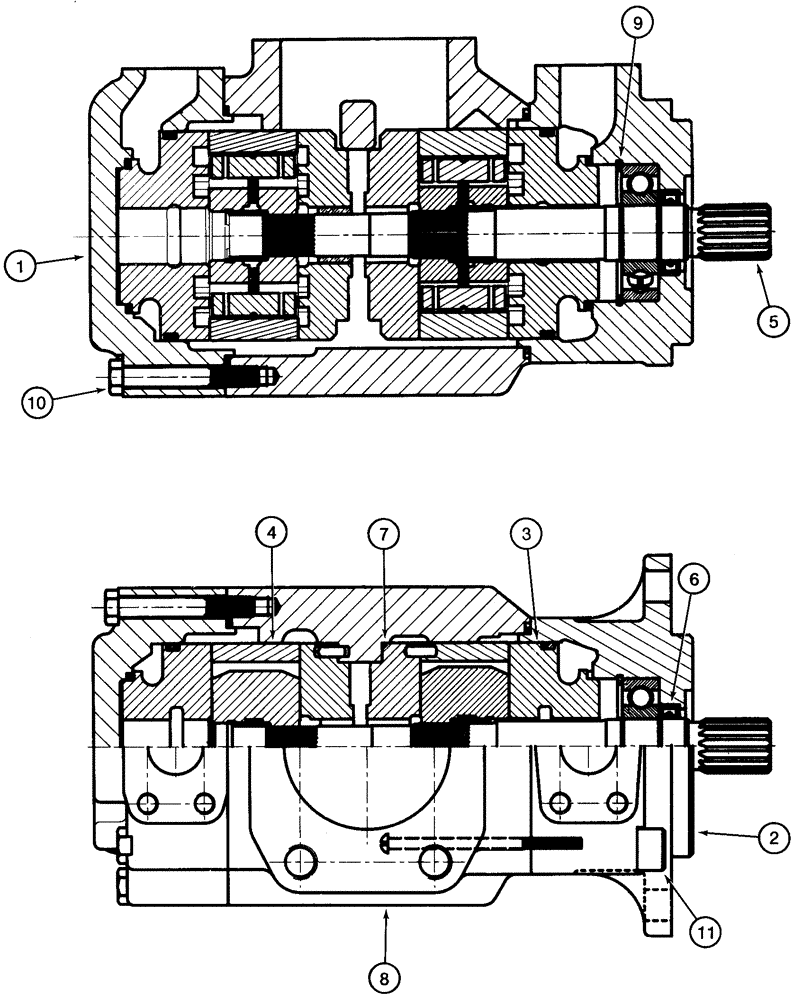

Запчасти Case 721C (08-15) - PUMP ASSY (08) - HYDRAULICS

296291A1

PUMP, HYDRAULIC,79.48 CC

Incl. 1-12

1шт.

296291A1R

REMAN-HYD PUMP

721C Case Wheel Loader, With The Transmission

1шт.

296291A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

256613A1

CAP

Port End

1шт.

2

256617A1

CAP

Shaft End

1шт.

3

319917A1

VALVE

Internal, Shaft End, Component Parts Not Serviced Separately

1шт.

4

319938A1

VALVE

Internal, Port End, Component Parts Not Serviced Separately

1шт.

5

256628A1

BEARING ASSY

Incl. Bearing, Component Parts Not Serviced Separately

1шт.

6

256629A1

SEAL KIT

Incl. Shaft Seal, Component Parts Not Serviced Separately

1шт.

7

256626A1

LARGE PLATE

PLATE, LARGE Internal, Rear Port Plate and Bushing

1шт.

8

256619A1

HOUSING

Center

1шт.

9

3215468R1

RING

Shaft and Bearing

1шт.

10

3215476R1

BOLT

Rear End Cover

7шт.

11

3215477R1

BOLT

Shaft End Cover

4шт.

256625A1

LARGE PLATE

PLATE, LARGE Rear Port, Not Illustrated

1шт.
