Запчасти Case 721C (08-14) - HYDRAULICS - COUPLER (08) - HYDRAULICS

North America Only

1шт.

XT Loader

1шт.

REF

INSTRUCTION

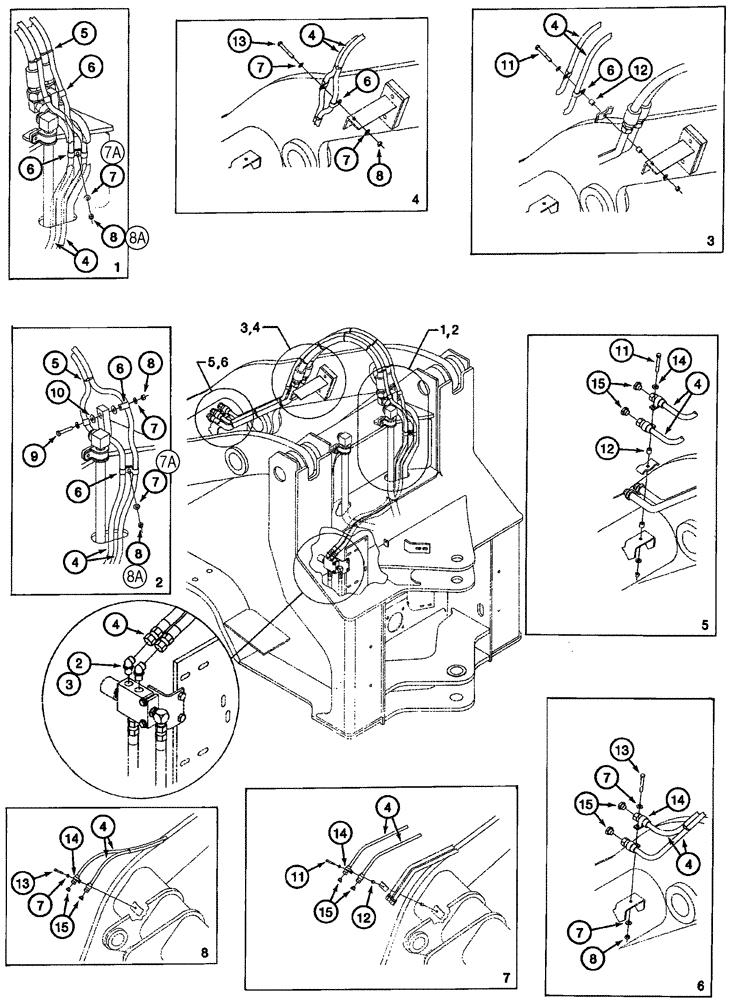

Views 1, 3, 5 and 7 shows hardware mounting on models with auxiliary hydraulics. Views 2, 4, 6 and 8 shows hardware mounting on models without auxiliary hydraulics. Views 1 through 6 are for XT loaders and views 7 and 8 are for Z-Bar and XR loaders

1шт.

1

305266A1

COUPLING

ACS Pro-Series 2000

1шт.

1a

305269A1

JRB Series

1шт.

Z-Bar and XR Loaders

1шт.

1b

305265A1

ACS Pro-Series 2000

1шт.

1c

305268A1

JRB Series, Complete; With Hoses From Locking Cylinders to Case Corp Plumbing on Lift Arms, Not Illustrated; See Your Local Dealer

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 3

2шт.

4

301862A1

HOSE ASSY.

3400 mm (133-7/8 in)

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

6

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

6шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

5-6шт.

7a

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

If Used

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

2-3шт.

8a

832-10410

NUT,M10 x 1.5, Cl 8

If Used

1шт.

9

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

11

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

Existing hardware supplied with auxiliary hydraulics

1шт.

12

D76209

SPACER

2шт.

13

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

15

218-772

PLUG,7/16"-20, 37 Degree

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
