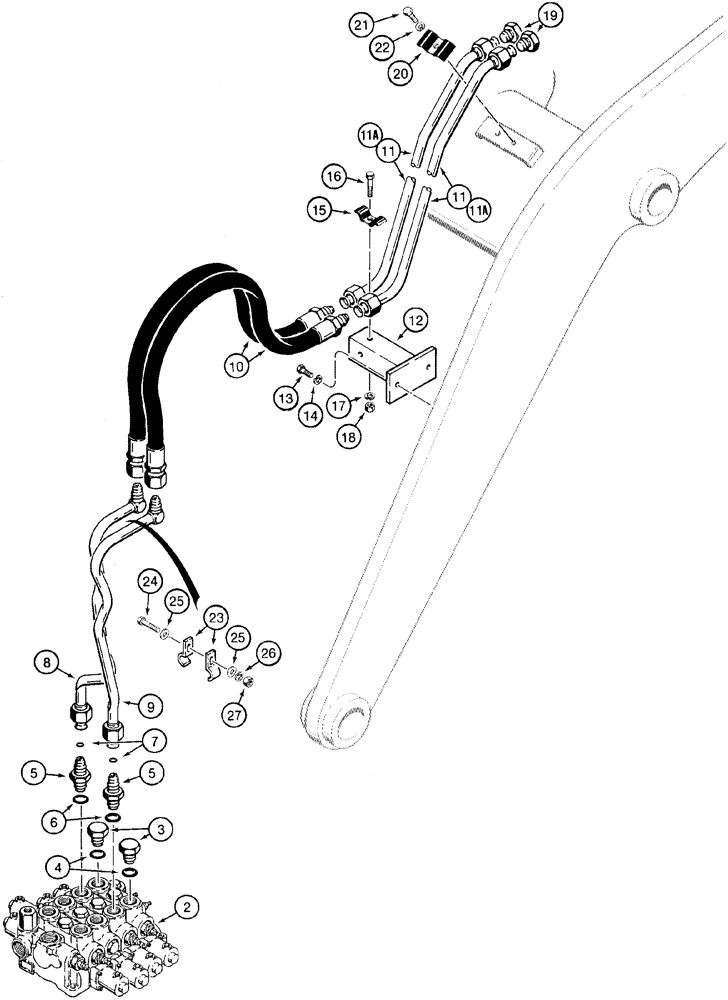

Запчасти Case 721C (08-10) - HYDRAULICS - LOADER AUXILIARY (08) - HYDRAULICS

Loader Auxiliary

1шт.

Control Valve to Auxiliary Bucket Cylinders

1шт.

Z-Bar and XR Loaders

1шт.

1

REF

INSTRUCTION

Valve, Control, Loader Control, Three Spool, See Figure 08-04, Not Illustrated

1шт.

2

REF

INSTRUCTION

Valve, Control, Loader Control, Four Spool, North America Only, See Figure 08-04

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 4, Use to Plug Ports of Fourth Valve Section on Units with a Four Spool Valve

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

L124291

FITTING

Incl. 6, 7

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

7

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face Seal End

1шт.

8

L126182

TUBE,25.4 mm OD

1шт.

9

L126180

TUBE,25.4 mm OD x 802, 248 mm L

1шт.

10

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

1100 mm (43-3/8 in)

2шт.

11

309466A1

HYD TUBE,25.4 mm OD, 701, 483 mm Length

Standard Loader Models

2шт.

11a

127487A1

HYD TUBE

Extended Reach Loader Models

2шт.

12

L126511

SUPPORT

1шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

R15257

CLAMP

1шт.

16

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

Standard loader models

1шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

Extended reach loader models

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

218-779

PLUG,1 5/16"-12, 37 Degree

Use when auxiliary attachments are not used

2шт.

20

R15257

CLAMP

1шт.

21

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

L32065

CLAMP

2шт.

24

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

25

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.
