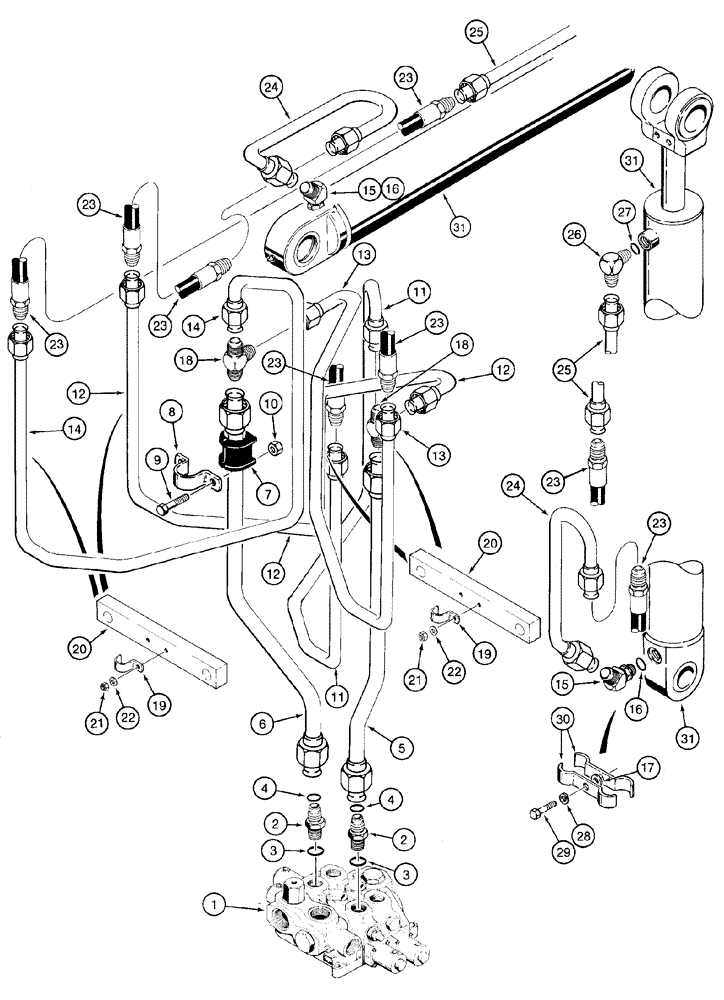

Запчасти Case 721C (08-09) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Loader Bucket
1шт.
XT Loader
1шт.
1
REF
INSTRUCTION
Valve, Control, Loader Control, See Figure 08-05
1шт.
2
L124290
CONNECTOR, ELEC
CONNECTOR Incl. 3, 4
2шт.
4
238-6024
O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro
Face Seal End
1шт.
5
131096A1
TUBE,31.75 mm OD, 826, 51 mm Length
Closed End
1шт.
6
131098A1
TUBE,31.75 mm OD, 826, 222 mm Length
Rod End
1шт.
7
D67298
INSULATOR
2шт.
8
L124293
MOUNTING CLIP
2шт.
9
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
4шт.
10
231-1446
NUT,3/8" - 16, Gr 5
4шт.
11
136325A1
TUBE,25.4 mm OD, 537, 446 mm Length
Right Hand Cylinder, Closed End
1шт.
12
136319A1
TUBE,25.4 mm OD, 629, 534 mm Length
Left Hand Cylinder, Closed End
1шт.
13
136321A1
TUBE,25.4 mm OD, 629, 534 mm Length
Right Hand Cylinder, Rod End
1шт.
14
136323A1
TUBE,25.4 mm OD, 537, 446 mm Length
Left Hand Cylinder, Rod End
1шт.
15
218-5147
ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 16
2шт.
16
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
17
496-41041
WASHER,13/32" x 1 1/8" x .134"
4шт.
18
218-607
TEE,37º, 1 5/16"-12 x 1 5/8"-12, Run
2шт.
19
A12308
CLAMP
8шт.
20
131256A1
BAR
4шт.
21
231-1446
NUT,3/8" - 16, Gr 5
8шт.
22
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
16шт.
23
131088A1
HOSE ASSY.,19.05mm ID x 1260mm L, SAE 100R12
1260 mm (49-5/8 in)
4шт.
24
346335A1
TUBE
Closed End
2шт.
25
346334A1
TUBE,25.4 mm OD, 779, 58 mm Length
Rod End
2шт.
26
218-5124
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 27
2шт.
27
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
28
492-11038
LOCK WASHER,3/8"
2шт.
29
426-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
2шт.
30
L119234
CLAMP
4шт.
31
112551A1
JACK BODY
114 ID x 1001 mm strk, Bucket, See Figure 08-35
1шт.
Выбрано товаров: 33
