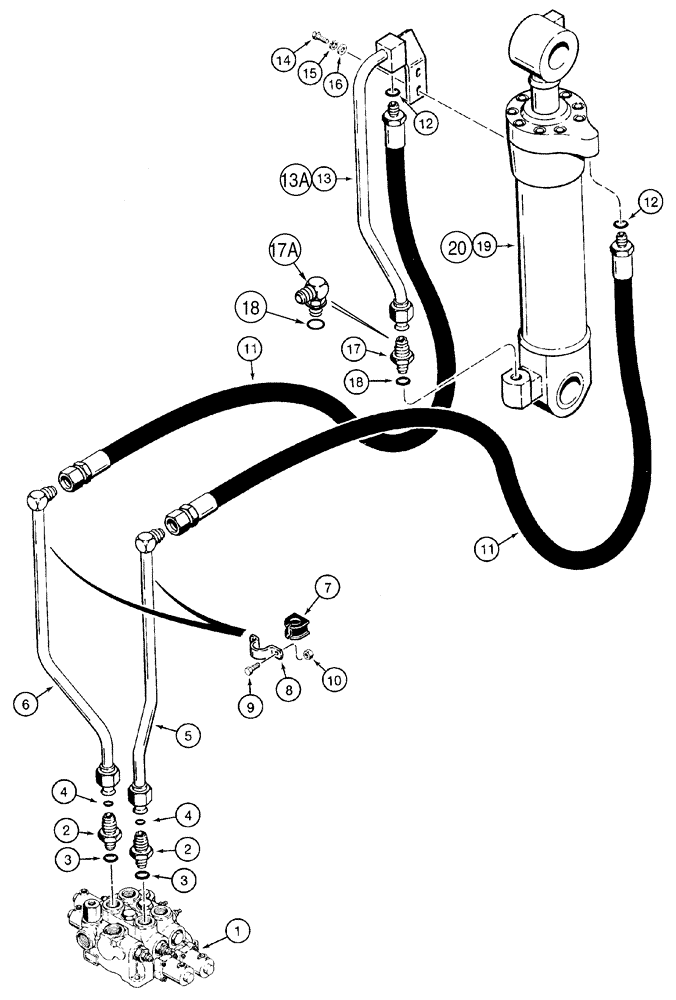

Запчасти Case 721C (08-08) - HYDRAULICS - LOADER BUCKET (08) - HYDRAULICS

Loader Bucket

1шт.

Z-Bar and XR Loaders

1шт.

1

REF

INSTRUCTION

Valve, Control, Loader Control, See Figure 08-04

1шт.

2

L124290

CONNECTOR, ELEC

CONNECTOR Incl. 3, 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Face Seal End

1шт.

5

L118810

TUBE,31.75 mm OD

Rod End

1шт.

6

329453A1

TUBE,31.75 mm OD, 812, 222 mm Length

Closed End

1шт.

7

D67298

INSULATOR

2шт.

8

L124293

MOUNTING CLIP

2шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

231-1446

NUT,3/8" - 16, Gr 5

4шт.

11

L124255

HOSE ASSY.,25.4mm ID x 1125mm L, SAE 100R12

1125 mm (44-3/8 in), Incl. 12

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

L118694

PIPE,31.75 mm OD

Used With 19

1шт.

13a

356810A1

TUBE

Used With 20

1шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

17

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/8 fl x 1-1/16 Or, Incl. 18, Used With 19

1шт.

17a

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 18, Used with 20

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

308986A1

CYLINDER ASSY.

165 ID x 544 mm strk, Bucket Cylinder, Z-Bar Loader, See Figure 08-33; No Longer Available, Order 349033A1

1шт.

19a

125873A1

CYLINDER ASSY.

165 ID x 544 mm strk, Bucket Cylinder, XR Loader, See Figure 08-34; Not Illustrated

1шт.

20

349033A1

CYLINDER ASSY.

165 ID x 544 mm strk, Bucket Cylinder, Z-Bar Loader, See Figure 08-33; Replaces 308986A1

1шт.
