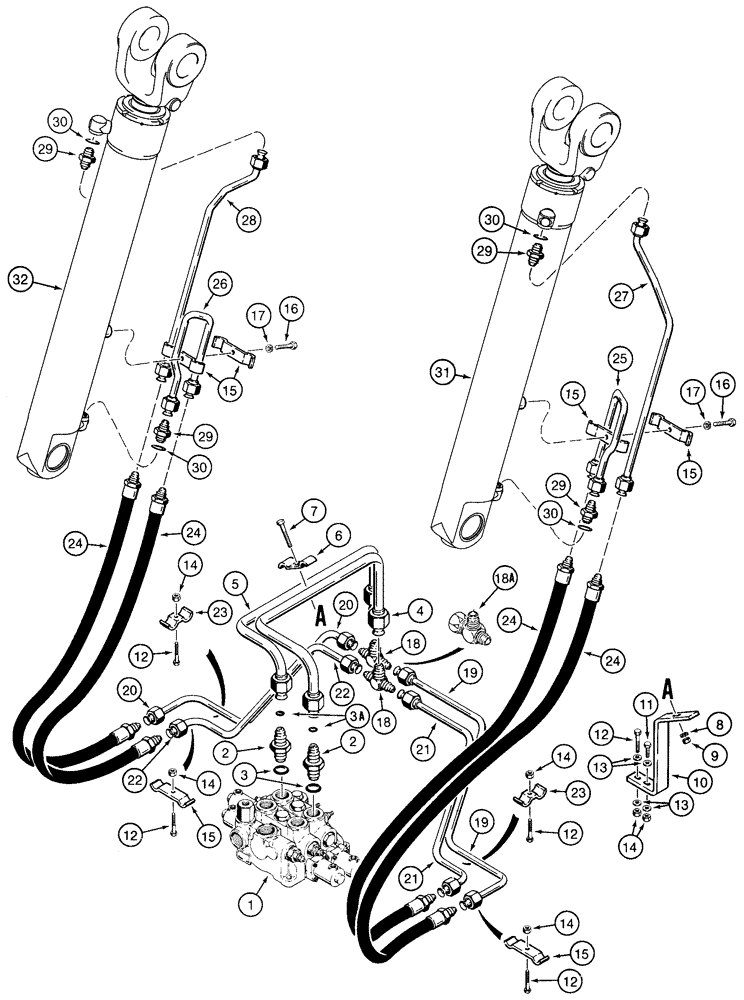

Запчасти Case 721C (08-07) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

Loader Lift

1шт.

Z-Bar, XR and XT Loaders

1шт.

1

REF

INSTRUCTION

Valve, Control, Loader Control, See Figure 08-04, 08-05

1шт.

2

L124291

FITTING

Incl. 3, 3A, Valve to Lift Tubes

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

3a

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Face Seal End

1шт.

4

L118618

PIPE,25.4 mm OD

Supply, Right Hand

1шт.

5

L118616

PIPE

Supply, Left Hand

1шт.

6

L124257

CLAMP

1шт.

7

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

1шт.

8

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

1шт.

10

L119010

SUPPORT

1шт.

11

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

12

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

5шт.

13

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

14

231-1446

NUT,3/8" - 16, Gr 5

6шт.

15

L119234

CLAMP

6шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

2шт.

18a

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Models with Ride Control

2шт.

19

L118620

PIPE,19.04 mm OD

Lift Cylinder, Right Hand, Rod End

1шт.

19a

132798A1

TUBE

Lift Cylinder, Right Hand, Rod End, Models With Ride Control, Not Illustrated

1шт.

20

L118622

PIPE,19.04 mm OD x 431, 407 mm L

Left Hand, Rod End

1шт.

21

L118624

PIPE,19.04 mm OD

Right Hand, Closed End

1шт.

21a

132796A1

TUBE

Right Hand, Closed End, Models With Ride Control, Not Illustrated

1шт.

22

L118626

PIPE,19.04 mm OD

Left Hand, Closed End

1шт.

23

R15257

CLAMP

2шт.

24

L124240

HOSE,19.1mm ID x 1100mm L, SAE 100R12

1100 mm (43-3/8 in)

4шт.

25

L118686

PIPE,19.04 mm OD

Right Hand, Closed End

1шт.

26

L118684

PIPE,19.04 mm OD

Left Hand, Closed End

1шт.

27

280905A1

TUBE,805, 187 mm Length

Right Hand, Rod End

1шт.

28

280904A1

TUBE,805, 187 mm Length

Left Hand, Rod End

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 30

4шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

280706A1

CYLINDER ASSY.

127 ID x 834 mm strk, Lift Cylinder, Right Hand, See Figure 08-32

1шт.

32

280707A1

CYLINDER ASSY.

127 IDx834 mm strk, Lift Cylinder, Left Hand, See Figure 0-32

1шт.
