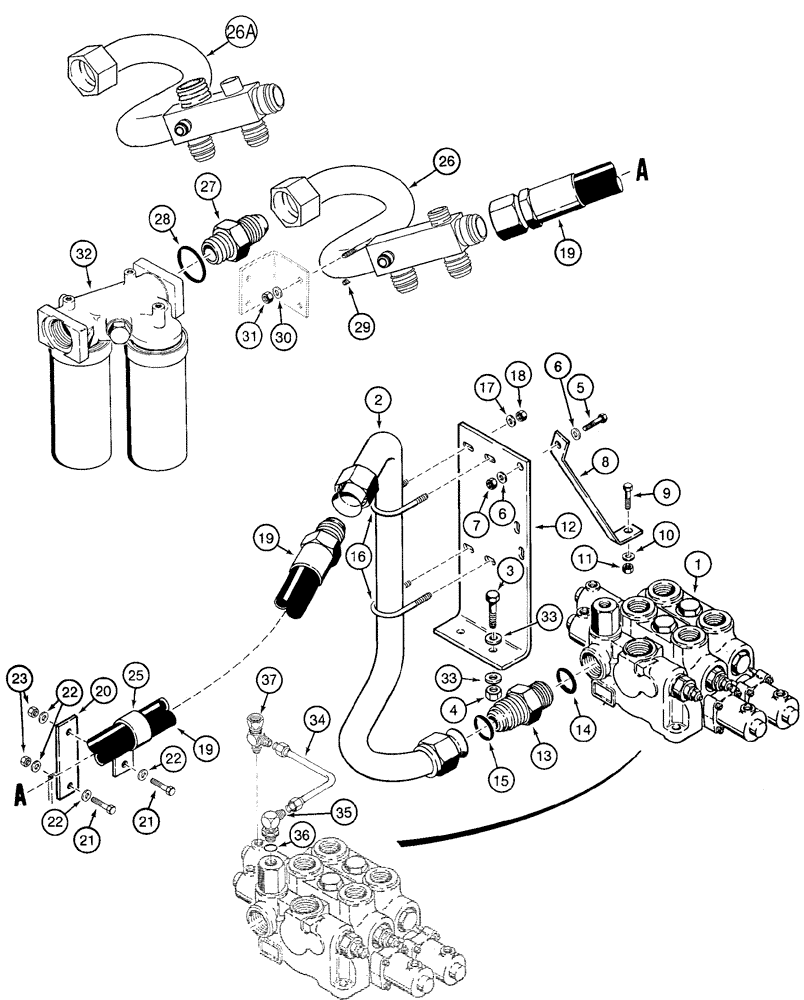

Запчасти Case 721C (08-05) - HYDRAULICS - LOADER VALVE TO FILTER (08) - HYDRAULICS

Loader Control, Serial Range: Valve-Filter

1шт.

XT Loader

1шт.

1

138753A1

VALVE

Loader Control, Two Spool, North America Only, See Figure 08-19

1шт.

1

138754A1

VALVE

Loader Control, Three Spool, North America and Europe, See Figure 08-21

1шт.

1

138755A1

VALVE

Loader Control, Four Spool, North America Only, See Figure 08-23

1шт.

2

L127085

PIPE,38.09 mm OD

Return From Loader Valve

1шт.

3

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

8

L119251

SUPPORT

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

1шт.

11

231-1406

LOCK NUT,3/8"-16, GB

1шт.

12

L119013

SUPPORT

1шт.

13

L124288

FITTING

Incl. 14, 15, No Longer Used, Order 218-5049

1шт.

13

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

Incl. 14, Replaces L124288

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

15

S98648

O-RING

1-3/8 ID x 1/16, Face Seal End, No Longer Used

1шт.

16

L105791

U-BOLT

2шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

18

231-1445

NUT,5/16"-18, GB

4шт.

19

292163A2

HYDRAULIC HOSE,31.75 mm ID x 900.00 mm, SAE 100R3

Return, No Longer Available, Order: P/N 292163A3

1шт.

19

292163A3

HOSE ASSY.,31.75mm ID x 924mm L, SAE 100R3

924 mm (36-3/8 in), Return, Replaces 292163A2

1шт.

20

L50641

CONNECTING STRIP

1шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

No Longer Used, Order 895-15010

4шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

25

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

26

277937A2

TUBE,38.09 mm OD, 349, 130 mm Length

Orifice Valve Block Tube, No Longer Available, Order 356696A1

1шт.

26a

356696A1

TUBE

Orifice Valve Block Tube, Replaces 277937A2

1шт.

27

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

1-7/8 fl x Or, Incl. 28

1шт.

28

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

29

L105791

U-BOLT

1шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

31

231-1445

NUT,5/16"-18, GB

2шт.

32

L126373

FILTER ASSY

Hydraulic Oil, See Figure 08-06

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

34

135646A1

HYD TUBE,9.25 mm OD, 107, 95 mm Length

Lift Section to Inlet/Outlet Section

1шт.

35

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 36

1шт.

37

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

22

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces 895-18010

4шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
