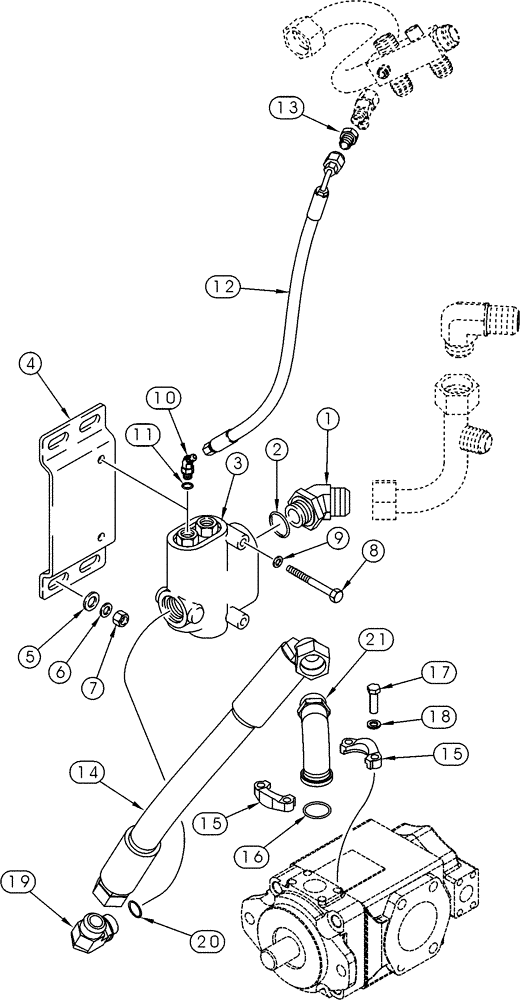

Запчасти Case 721C (08-03) - HYDRAULICS - PUMP, SUPPLY AND RETURN (08) - HYDRAULICS

Flow Control, Serial Range: Valve-Pump

1шт.

1

280052A1

ELBOW

1-5/8 fl x 1-5/16 Or, Incl. 2

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

3

L126106

VALVE

See Figure 08-16

1шт.

4

279951A1

SUPPORT

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

9

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm

2шт.

10

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj, Incl. 11

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

278065A2

HOSE ASSY.

538 mm (21-3/16 in)

1шт.

13

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

1шт.

14

295550A2

HOSE ASSY.,31.75mm ID x 660mm L, SAE 100R12

660 mm (26 in)

1шт.

15

A12301

CLAMP,Half

2шт.

16

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

17

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

18

892-11012

LOCK WASHER,M12

4шт.

19

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

296026A1

ELBOW

1шт.
