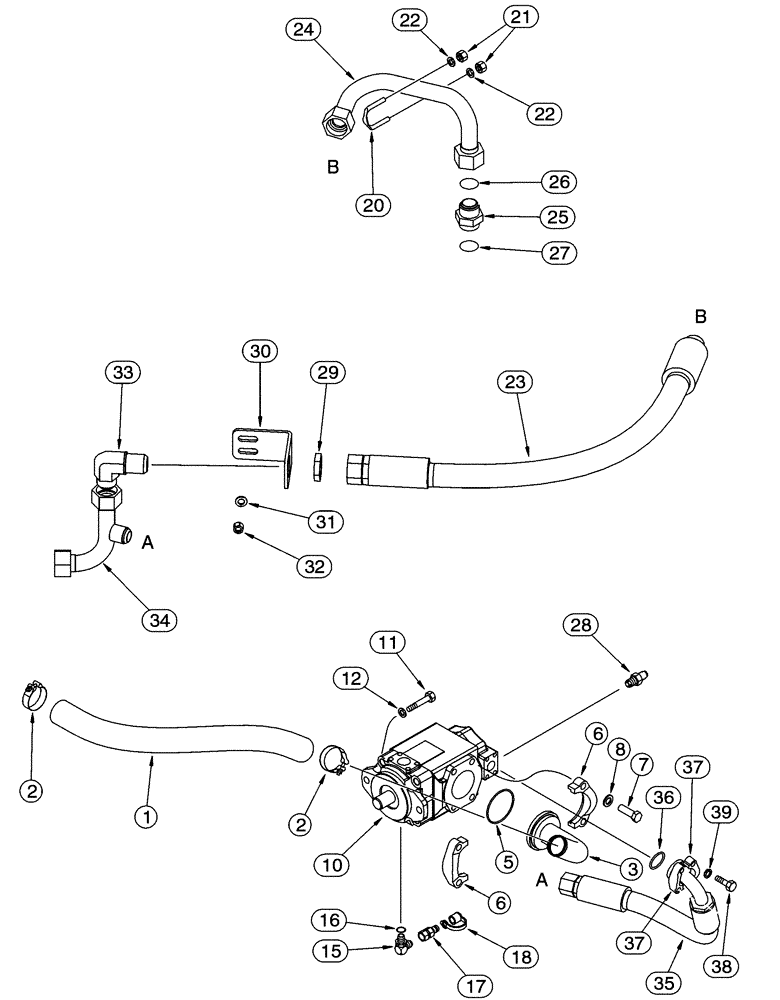

Запчасти Case 721C (08-02) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP (08) - HYDRAULICS

*

Reservoir to Pump and Loader Control Valve

1шт.

1

295526A1

HOSE,50.8mm ID x 750mm L, SAE 100R4

750 mm (29-1/2 in), Suction, Reservoir to Pump Inlet

1шт.

2

L126871

CLAMP

Hose

2шт.

3

116997A1

ADAPTER

No Longer Used, Order 347817A1

1шт.

3

347817A1

ADAPTER,47.5mm ID x 293.49mm L

Replaces 116997A1

1шт.

5

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

6

L13135

CLAMP

Tube

2шт.

7

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

8

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

10

296291A1

PUMP, HYDRAULIC,79.48 CC

See Figure 08-15; O-ring Between Pump and Transmission Is Supplied With The Transmission; See Figure 06-14; Ref 5

1шт.

10

296291A1R

REMAN-HYD PUMP

721C Case Wheel Loader, With The Transmission

1шт.

10

296291A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

12

NLS

NO LONGER SERVICED

5/8

2шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

101792A1

COUPLING

Check Port

1шт.

18

H434163

DUST CAP

Coupler

1шт.

20

294901A1

U-BOLT,M8 x 1.25, Coined

BOLT "U" M8 x 1.25

1шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

23

277840A1

HOSE ASSY.,31.75mm ID x 961mm L, SAE 100R12

961 mm (37-7/8 in), Supply, Priority Valve to Loader Valve

1шт.

24

L118737

PIPE,31.75 mm OD

1шт.

25

L124289

CONNECTOR, ELEC

CONNECTOR Incl. 26, 27

1шт.

26

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Face Seal End

1шт.

27

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

28

S243647

COUPLING

1шт.

29

218-1257

BHD LOCK NUT,Blkhd, 1 5/8"-12

1шт.

30

280056A1

SUPPORT

1шт.

31

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

33

218-699

ELBOW,90 Degree Blkhd, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree

1шт.

34

277216A2

TUBE,31.75 mm OD, 165, 88 mm Length

Priority Valve to Loader Valve, No Longer Available, Order 356562A1

1шт.

34

356562A1

TUBE,31.75 mm OD, 165, 88 mm Length

Priority Valve to Loader Valve, Replaces 277216A2

1шт.

35

295549A1

HOSE ASSY.,25.4mm ID x 708mm L, SAE 100R12

708 mm (27-7/8 in), Pump to Loader Valve

1шт.

36

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

37

A12306

FLANGE

2шт.

38

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

39

892-11010

LOCK WASHER,M10

4шт.
