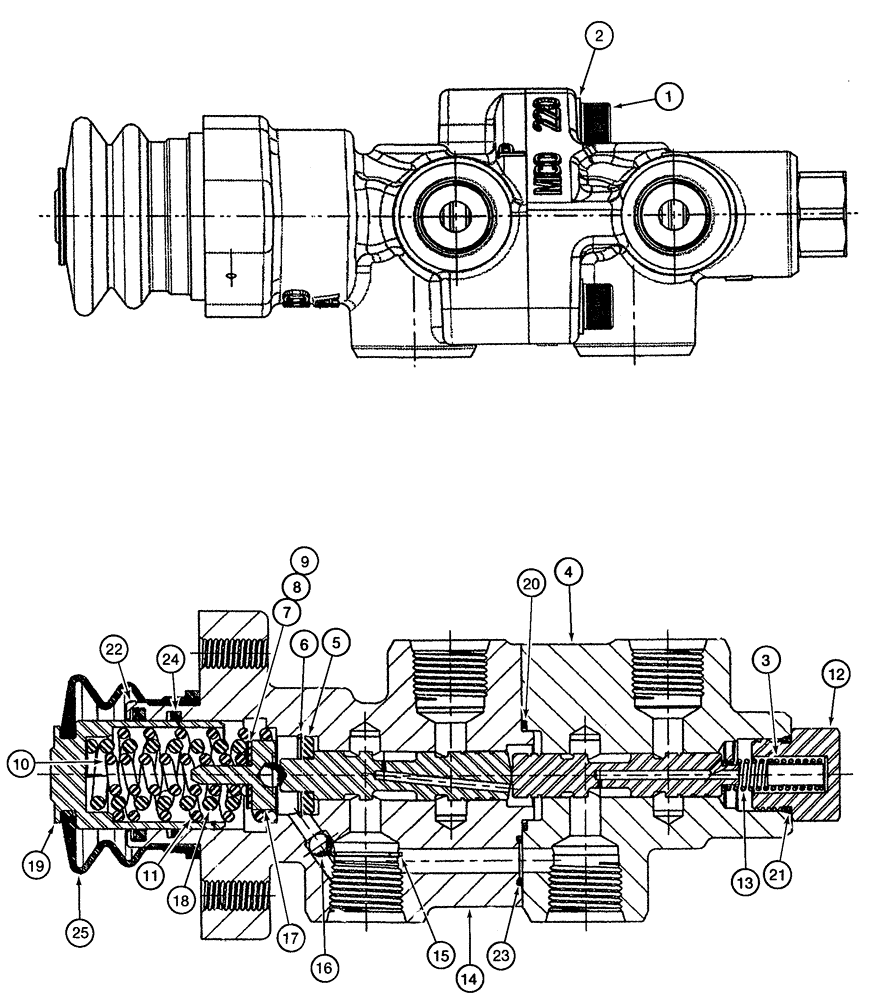

Запчасти Case 721C (07-13) - VALVE ASSY - BRAKE (07) - BRAKES

331968A1

VALVE

Main Brake Valve, Incl. 1-25, Component Parts No Longer Serviced Separately, Boot And External Seals Replaced With Kit 331971A1

1шт.

1

100672A1

HEX SOC SCREW,5/16" - 18 x 1"

2шт.

2

100673A1

WASHER

2шт.

3

NSS

NOT SOLD SEPARAT

Retainer, Replaces 333314A1

1шт.

4

NSS

NOT SOLD SEPARAT

Housing, Replaces 333315A1

1шт.

5

NSS

NOT SOLD SEPARAT

Spacer, Replaces 333317A1

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Retaining, Replaces 333318A1

1шт.

7

NSS

NOT SOLD SEPARAT

Shim, Replaces 333319A1

1шт.

8

NSS

NOT SOLD SEPARAT

Shim, Replaces 333320A1

1шт.

9

NSS

NOT SOLD SEPARAT

Shim, Replaces 333321A1

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Replaces 333322A1

1шт.

11

NSS

NOT SOLD SEPARAT

Spring, Replaces 333323A1

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Replaces 333325A1

1шт.

13

NSS

NOT SOLD SEPARAT

Spring, Replaces 333326A1

1шт.

14

NSS

NOT SOLD SEPARAT

Housing, Replaces 333328A1

1шт.

15

NSS

NOT SOLD SEPARAT

Ring, Retaining, Replaces 333329A1

1шт.

16

NSS

NOT SOLD SEPARAT

Ball, Replaces 333330A1

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer, Replaces 333331A1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Replaces 333332A1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Replaces 333335A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333316A1

1шт.

21

NSS

NOT SOLD SEPARAT

41/64 ID x 3/32, O-Ring, Replaces 237-6008

1шт.

22

NSS

NOT SOLD SEPARAT

Cup, Replaces 333324A1

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333327A1

1шт.

24

NSS

NOT SOLD SEPARAT

Ring, Replaces 333333A1

1шт.

25

NSS

NOT SOLD SEPARAT

Boot, Replaces 333334A1

1шт.

331971A1

SEAL KIT

Incl. 20 - 25, Component Parts No Longer Serviced Separately

1шт.
