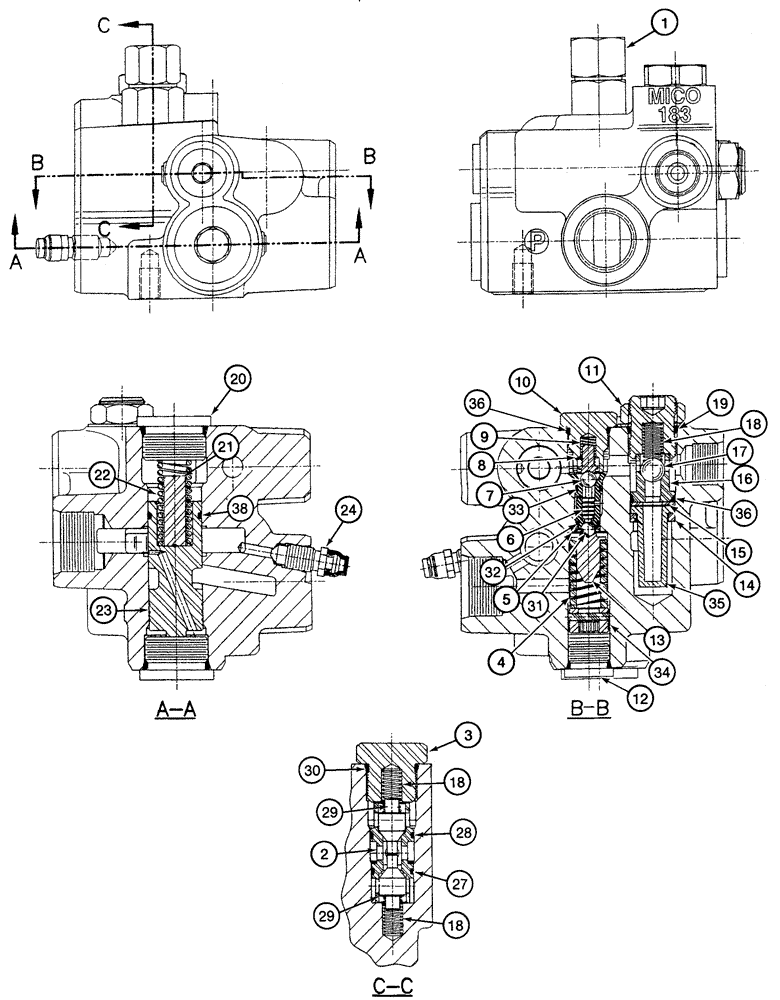

Запчасти Case 721C (07-11) - VALVE ASSY - ACCUMULATOR, BRAKE (07) - BRAKES

313362A1

VALVE

Brake Accumulator Valve, Component Parts No Longer Serviced Separately, Incl. 1-38

1шт.

1

333365A1

VALVE PRESSURE RELIE

Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Sleeve, Replaces 333367A1

1шт.

3

NSS

NOT SOLD SEPARAT

Cap, Replaces 333371A1

1шт.

4

NSS

NOT SOLD SEPARAT

Spring, Replaces S302034

1шт.

5

NSS

NOT SOLD SEPARAT

Insert, Replaces 333373A1

1шт.

6

NSS

NOT SOLD SEPARAT

Spool, Replaces 333375A1

1шт.

7

NSS

NOT SOLD SEPARAT

Ball, Replaces 333377A1

1шт.

8

NSS

NOT SOLD SEPARAT

Stop, Replaces 333378A1

1шт.

9

NSS

NOT SOLD SEPARAT

Spring, Replaces 333379A1

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Replaces 333380A1

1шт.

11

NSS

NOT SOLD SEPARAT

Nut, Replaces 333381A1

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Replaces 333382A1

1шт.

13

NSS

NOT SOLD SEPARAT

Retainer, Replaces 333384A1

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Replaces 333386A1

1шт.

15

NSS

NOT SOLD SEPARAT

Washer, Replaces 333387A1

1шт.

16

NSS

NOT SOLD SEPARAT

Seat, Replaces 333388A1

1шт.

17

NSS

NOT SOLD SEPARAT

Ball, Replaces 333389A1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Replaces 333390A1

3шт.

19

NSS

NOT SOLD SEPARAT

Screw, Replaces 333392A1

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Replaces 333393A1

2шт.

21

NSS

NOT SOLD SEPARAT

Rod, Replaces 333394A1

1шт.

22

NSS

NOT SOLD SEPARAT

Spring, Replaces S302035

1шт.

23

NSS

NOT SOLD SEPARAT

Spool, Replaces 333396A1

1шт.

24

NSS

NOT SOLD SEPARAT

Screw, Replaces S107710

1шт.

25

NSS

NOT SOLD SEPARAT

Housing, Replaces 333398A1

1шт.

331976A1

GASKET KIT

Incl. 27-38, Component Parts No Longer Serviced Separately

1шт.

27

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333366A1

1шт.

28

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333368A1

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet, Valve, Replaces 333369A1

2шт.

331976A1

GASKET KIT

Incl. 27-38, Component Parts No Longer Serviced Separately

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333370A1

1шт.

31

NSS

NOT SOLD SEPARAT

Ball, Replaces 333372A1

1шт.

32

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333374A1

1шт.

33

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333376A1

1шт.

34

NSS

NOT SOLD SEPARAT

Screw, Replaces 333383A1

1шт.

35

NSS

NOT SOLD SEPARAT

Filter, Replaces 333385A1

1шт.

36

NSS

NOT SOLD SEPARAT

41/64 ID x 3/32, O-Ring, Replaces 237-6008

2шт.

37

NSS

NOT SOLD SEPARAT

O-Ring, Replaces 333391A1

1шт.

38

NSS

NOT SOLD SEPARAT

Ring, Replaces 333395A1

1шт.
