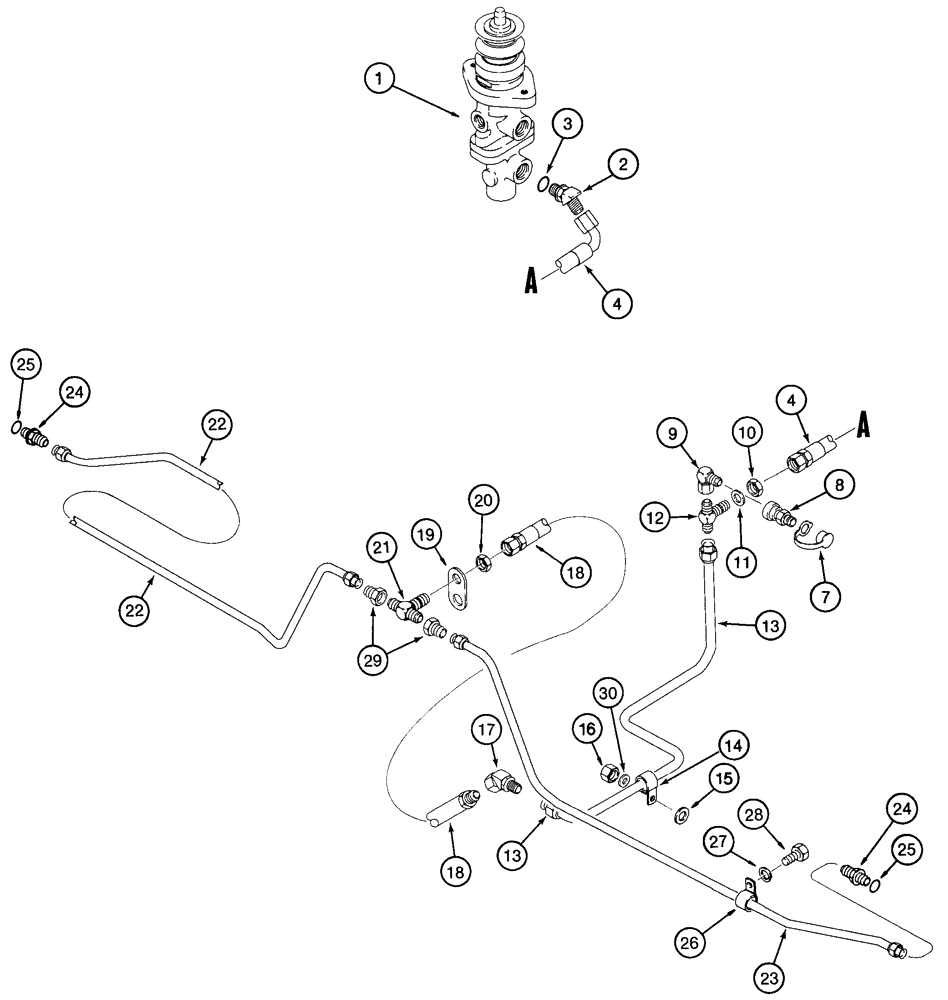

Запчасти Case 721C (07-09) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

Main Brake Valve to Rear Axle

1шт.

Axle 313144A1

1шт.

1

331968A1

VALVE

Main Brake Valve, See Figure 07-12

1шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238409A1

HOSE ASSY.

1293 mm (50-15/16 in), Rear Brakes

1шт.

7

H434163

DUST CAP

1шт.

8

192834A1

COUPLING

Check Port

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

10

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

11

895-11018

WASHER,M18 x 34 x 3

20 x 34 x 3

1шт.

12

218-805

TEE,3/4"-16, 37 Degree, Blkhd

3/4 blkhd fl br x fl x fl

1шт.

13

247069A1

TUBE

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

18

192825A1

HOSE

745 mm (29-3/8 in)

1шт.

19

189274A1

SPACER

Use Bolt From Rear, Serial Range: Axle-Mount

1шт.

20

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

21

218-805

TEE,3/4"-16, 37 Degree, Blkhd

3/4 blkhd fl br x fl x fl

1шт.

22

192824A1

TUBE

Rear Axle, Left Hand

1шт.

23

192823A1

TUBE

Rear Axle, Right Hand

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 25

2шт.

26

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

4шт.

29

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
