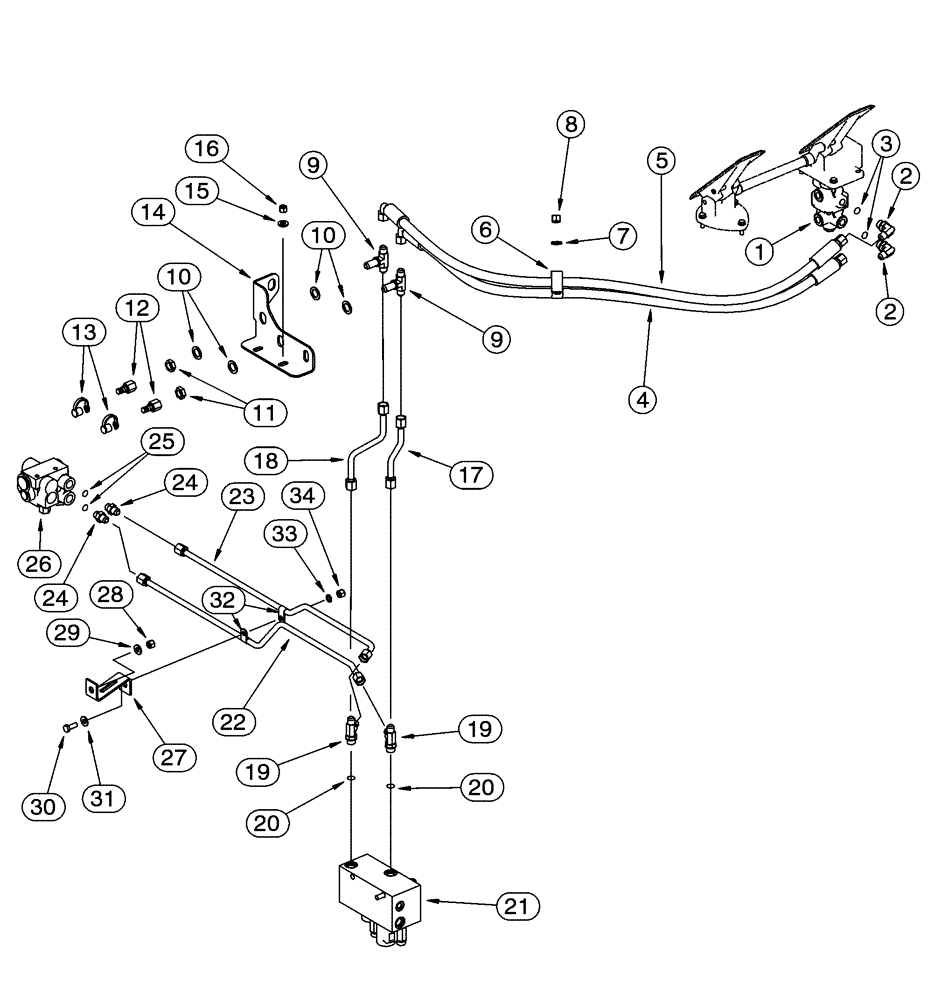

Запчасти Case 721C (07-06) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

Main Brake Valve To Front and Rear Axles

1шт.

1

331968A1

VALVE

See Figure 07-13

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238410A1

HOSE ASSY.

1342 mm (52-7/8 in)

1шт.

5

238411A1

HOSE ASSY.

1418 mm (55-7/8 in)

1шт.

6

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

9

218-805

TEE,3/4"-16, 37 Degree, Blkhd

3/4 blkhd fl br x fl x fl

2шт.

10

495-81037

WASHER,25/32" x 1 1/4" x .060"

4шт.

11

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

12

192834A1

COUPLING

Quick Disconnect Coupling, Diagnostic

2шт.

13

H434163

DUST CAP

2шт.

14

284898A1

SUPPORT

No Longer Used, Order 366180A1

1шт.

14

366180A1

BRACKET

Replaces 284898A1

1шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

241138A2

TUBE,12.7 mm OD

Supply, Rear

1шт.

18

241137A2

TUBE,12.7 mm OD

Supply, Front

1шт.

19

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

198998A3

VALVE

Combination Valve, See Figure 08-56, If Used

1шт.

21a

198998A4

VALVE

Combination Valve, See Figure 08-57, If Used, Not Illustrated

1шт.

22

314656A1

TUBE,12.7 mm OD, 802, 80 mm Length

Rear Brake Pressure

1шт.

23

314654A1

TUBE,12.7 mm OD, 726.4, 40 mm Length

Front Brake Pressure

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

313362A1

VALVE

Accumulator Charging, See Figure 07-11

1шт.

27

314931A1

SUPPORT

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

30

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

32

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

33

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

31

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
