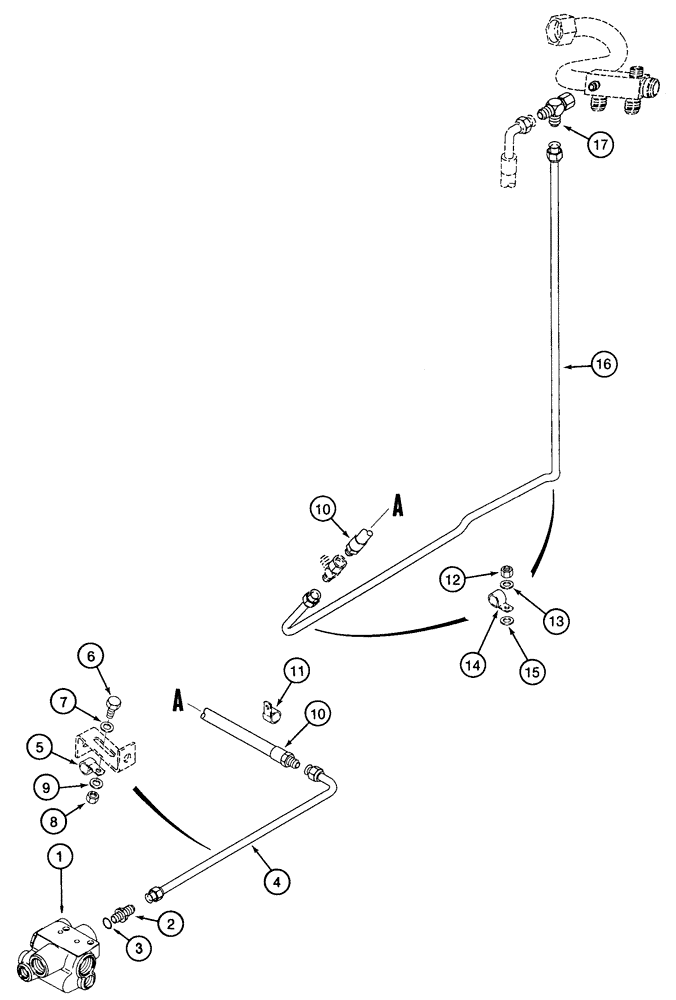

Запчасти Case 721C (07-05) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

Accumulator Valve to Return Port On Orifice Valve Block Tube

1шт.

1

313362A1

VALVE

Brake Accumulator Valve, Accumulator Charging, See Figure 07-11

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

314852A1

TUBE,12.7 mm OD, 475, 78 mm Length

Brake Accumulator Charging Valve

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Attaches to 314931A1 Bracket

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

10

314884A1

HOSE ASSY.

828 mm (32-5/8 in), Attaches to 218-845 Tee On Models With Auxiliary Steering

1шт.

11

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Attaches to Converter with Existing Hardware

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Attaches to Stud on Rear Chassis

2шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

16

314854A1

TUBE

1шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches To 278065A2 Return Hose To Flow Control Valve and 277937A2 Orifice Valve Block Tube

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.
