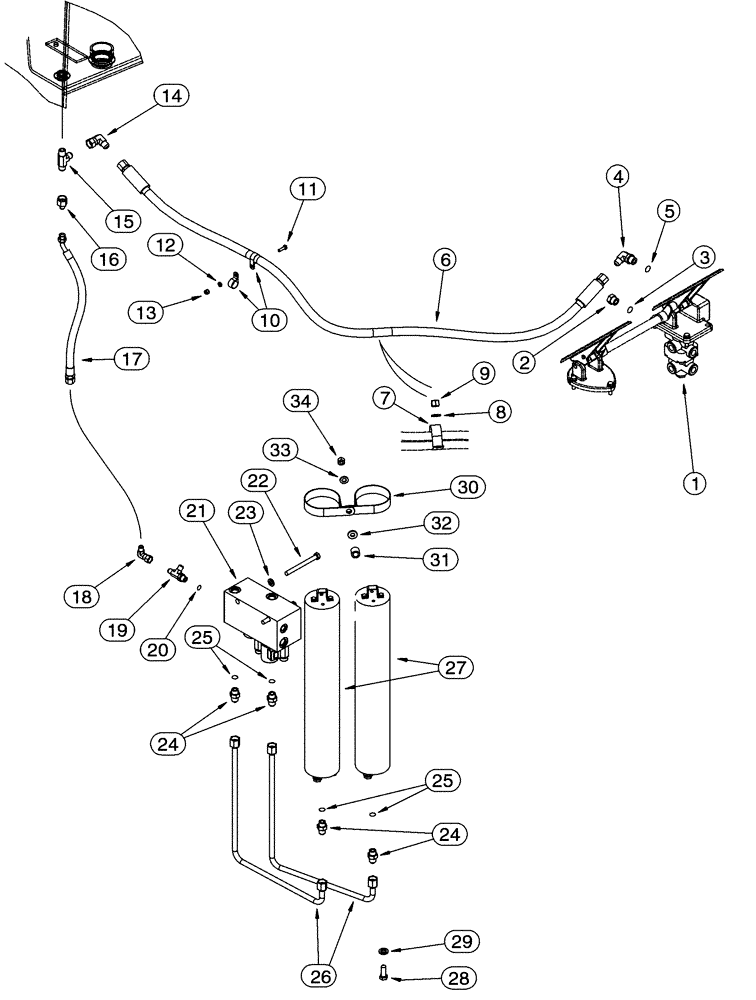

Запчасти Case 721C (07-04) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

Valve Drain to Hydraulic Tank

1шт.

Brake Valve, Combination Valve and Accumulator

1шт.

1

331968A1

VALVE

See Figure 07-13, For Mounting, See Figure 07-02

1шт.

2

214389

PLUG,3/4" - 16 ORB

Includes Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

311911A1

HOSE ASSY.

1656 mm (65-1/4 in), Brake Valve to Tee at Hydraulic Tank

1шт.

7

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

10

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

No Longer Used, Order 515-23238

2шт.

10

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

Replaces 515-21222

2шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Replaces 627-6020

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

Replaces 832-10406

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

Attaches to tee at hydraulic tank

1шт.

15

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

At Hydraulic Tank

1шт.

16

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

17

238089A1

HOSE ASSY.

607 mm (24 in), Drain

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

19

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 20, Port 'T', See Note

1шт.

21

198998A3

VALVE

Combination Valve, See Figure 08-56, If Used

1шт.

21a

198998A4

VALVE

Combination Valve, See Figure 08-57, If Used, Not Illustrated

1шт.

22

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

4шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

283793A1

TUBE,12.7 mm OD, 375, 313 mm Length

Accumulator

2шт.

27

284444A1

ACCUMULATOR

See Figure 07-14

2шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

30

283777A2

CLAMP

Replaces 283777A1

2шт.

31

283846A1

SPACER

14 x 16 x 19 mm

1шт.

32

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

33

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, Replaces 896-11010

1шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm, Replaces 895-11006

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
