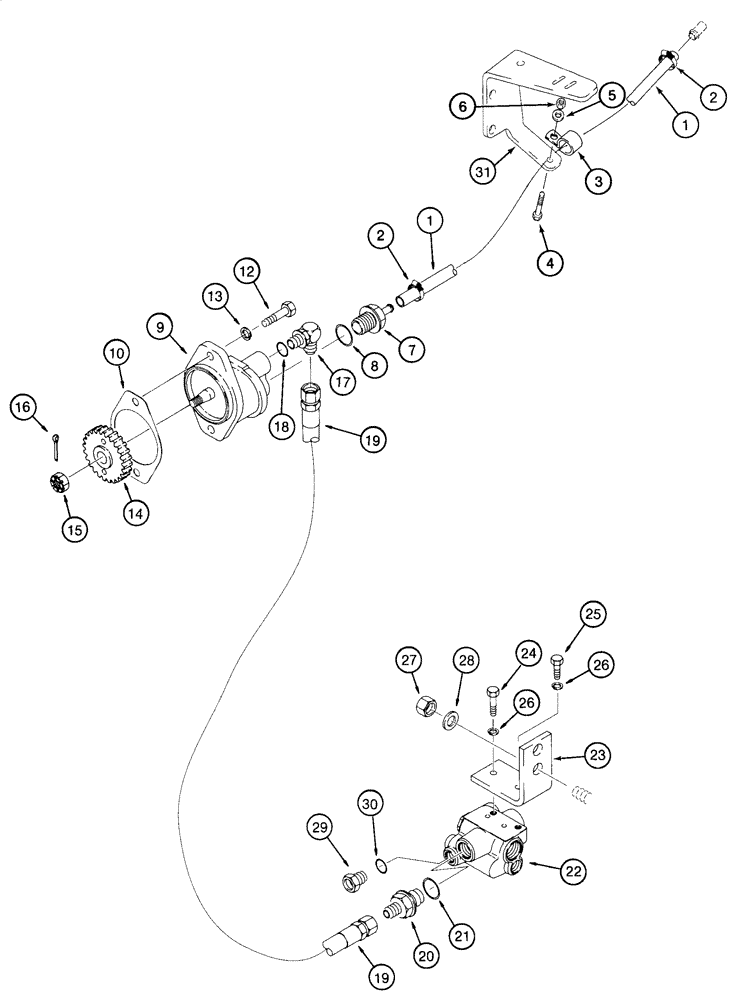

Запчасти Case 721C (07-03) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

1

301953A2

HOSE,0.75" ID x 43.31"

1100 mm (43-5/16 in), Brake Motor Supply at Reservoir

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

3/4 stem x 1-1/16 Or, Incl. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

317020A1

PUMP, HYDRAULIC

Brake, See Figure 07-12

1шт.

87453067R

REMAN-HYD PUMP

721C, Reman for New P/N 317020A1

1шт.

87453067C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

J931608

GASKET

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

13

892-11012

LOCK WASHER,M12

2шт.

14

J924186

GEAR

Brake Pump

1шт.

15

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

16

432-616

COTTER PIN,3/32" x 1"

1шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

107323A1

HOSE ASSY.

410 mm (16-1/4 in), Pump to Accumulator Valve

1шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Incl. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

313362A1

VALVE

Brake Accumulator Valve, See Figure 07-11

1шт.

23

L129987

BRACKET

1шт.

24

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

29

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

Incl. 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

301854A1

SUPPORT

Attaches to Cylinder Head, See Figure 03-01

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

Reservoir to Pump to Accumulator Valve

1шт.
