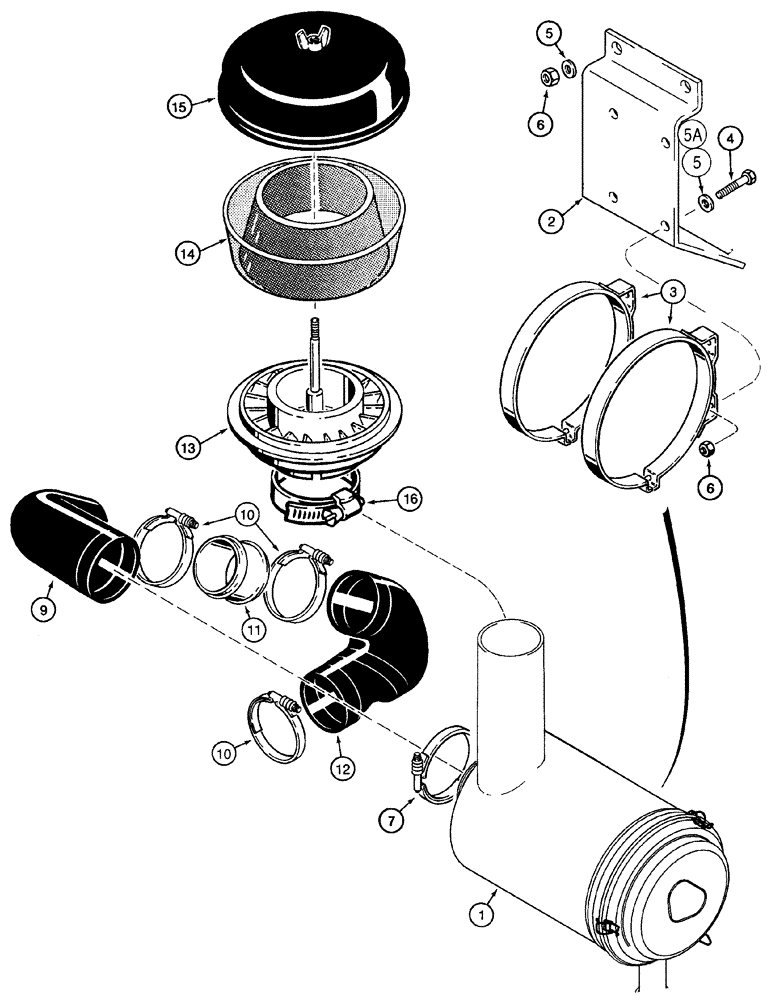

Запчасти Case 721C (02-06) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

247825A1

AIR CLEANER

See Figure 02-07, No Longer Available, Order 247825A2

1шт.

1

247825A2

AIR CLEANER

See Figure 02-07, Replaces 247825A1

1шт.

2

300328A1

SUPPORT

1шт.

3

S238773

CLAMP

2шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4-8шт.

5a

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, If Used

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

7

L124802

COLLAR CLAMP

Hose to Air Cleaner

1шт.

9

282962A1

INTAKE AIR HOSE,114.30 mm ID x 188.00 mm, SAE J200

1шт.

10

L127771

CLAMP,107.95mm - 130.18mm

3шт.

11

L127479

TUBE,101.6 mm OD x 66.7 mm L

57 mm (2-5/8 in)

1шт.

12

L127556

ELBOW

1шт.

258541A1

PRECLEANER

Incl. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Body

1шт.

14

L30671

HOUSING

1шт.

15

L30669

COVER

1шт.

16

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.
