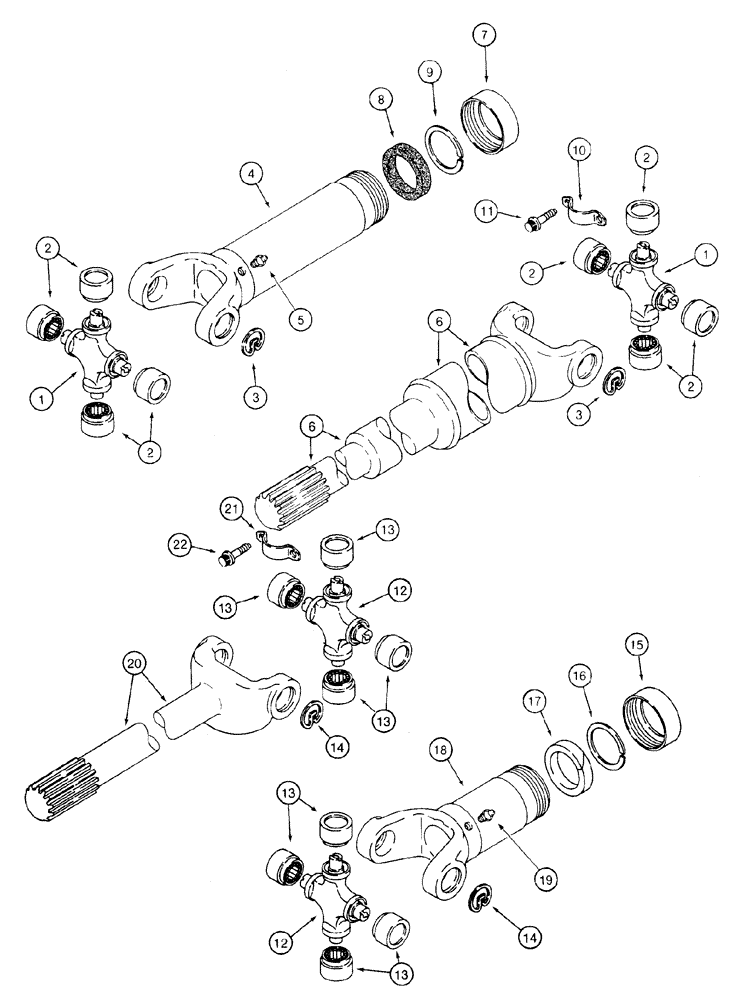

Запчасти Case 721C (06-39) - DRIVE SHAFT - CENTER AND REAR (06) - POWER TRAIN

Center Drive Shaft

1шт.

103712A1

DRIVE SHAFT

Incl. 1-9

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Incl. 1-3

2шт.

1

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

2

NSS

NOT SOLD SEPARAT

Race

4шт.

3

S92378

RING, SNAP

RING SNAP Universal Joint

4шт.

4

877128R91

YOKE

UNIVERSAL JOINT YOKE Transmission End

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

6

226729A1

JAW

Axle End

1шт.

7

S85992

CAP COVER

1шт.

8

S301161

SEAL

1шт.

9

S88377

WASHER

1шт.

10

L116943

SECURING STRAP

Bearing

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing strap

8шт.

103710A1

DRIVE SHAFT

Incl. 12-20

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Incl. 12-14

2шт.

12

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

13

NSS

NOT SOLD SEPARAT

Race

4шт.

14

S92378

RING, SNAP

RING SNAP Universal Joint

4шт.

15

S300645

CAP

1шт.

16

S300646

WASHER

1шт.

17

S300647

WASHER

1шт.

18

S300651

HALF SHAFT

Axle End

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

120218A1

YOKE

UNIVERSAL JOINT YOKE Transmission End

1шт.

21

L116943

SECURING STRAP

4шт.

22

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing strap

8шт.
