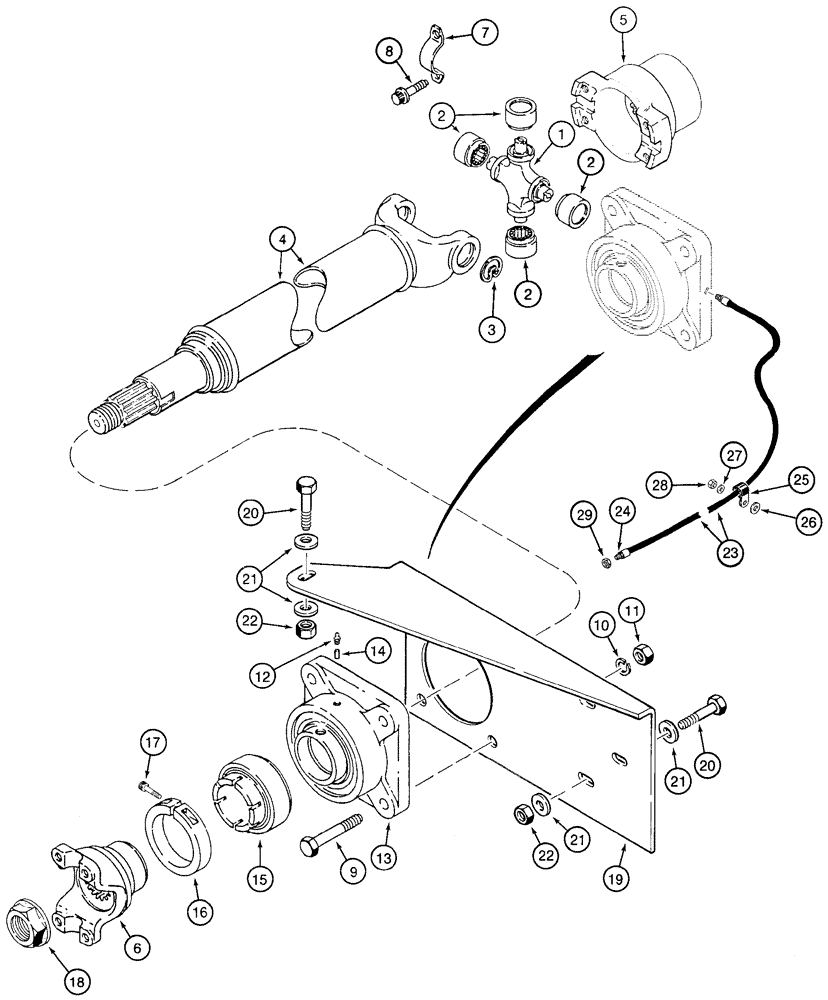

Запчасти Case 721C (06-38) - DRIVE SHAFT, FRONT - BEARING, SUPPORT AND LUBE LINE (06) - POWER TRAIN

Front Drive Shaft

1шт.

L127281

SHAFT ASSY.

Front Axle, Incl. S300313, 1-4, No Longer Used, Order 392455A1

1шт.

392455A1

DRIVE SHAFT

Front Axle, Incl. S300313, 1-4, Replaces L127281

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

Incl. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

2

NSS

NOT SOLD SEPARAT

Race

4шт.

3

S92378

RING, SNAP

RING SNAP Universal Joint

4шт.

4

NSS

NOT SOLD SEPARAT

Tube

1шт.

5

REF

INSTRUCTION

Flange, Drive Shaft to Front Axle, See Figure 06-28, For Ref 13

1шт.

6

L116944

YOKE

Drive Shaft to Center Bearing, For Bearing Straps and Bolts, See Figure 06-39

1шт.

7

L116943

SECURING STRAP

Bearing To Flange

2шт.

8

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing strap

4шт.

Drive Shaft Support Bearing

1шт.

9

426-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

4шт.

10

492-11056

LOCK WASHER,9/16"

4шт.

11

425-109

NUT,9/16"-12, G5

4шт.

L106070

FLANGED BEARING

Front Drive Shaft Support, Incl. 12-14

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

L33788

AXLE PIN

1/4 in dia

1шт.

L33787

KIT

Bearing And Collar

1шт.

15

NSS

NOT SOLD SEPARAT

Beaqring Support

1шт.

16

L33789

COLLAR

1шт.

17

61-32516

HEX SOC SCREW,1/4"-20 x 1"

1шт.

18

L35091

NUT

Special; Replaces L117413

1шт.

19

108167A1

BRACKET

1шт.

20

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

22

231-1448

NUT,1/2"-13, GB

4шт.

23

313683A1

FLEXIBLE HOSE

Incl. 24

1шт.

24

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

1шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

26

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4mm

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

F53473

LOCK NUT,1/8-27 NPSM

Special; 1/8 PT

1шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
