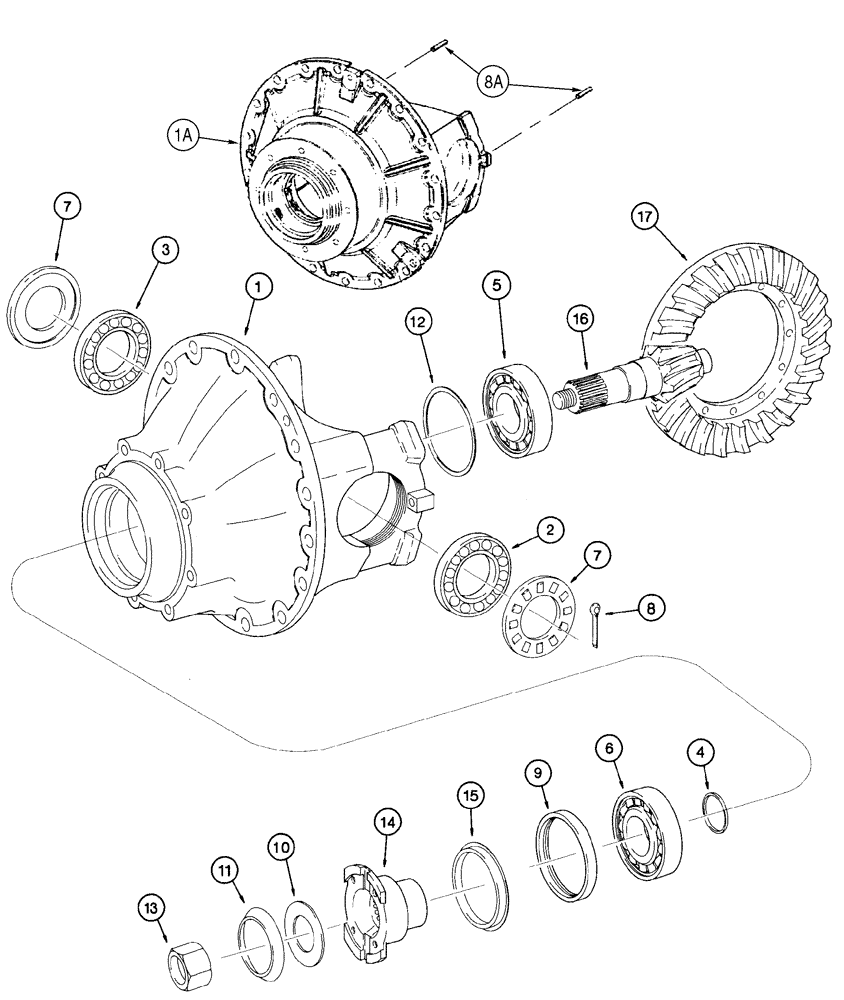

Запчасти Case 721C (06-36) - AXLE, REAR - DIFFERENTIAL CARRIER (06) - POWER TRAIN

313144A1

AXLE HOUSING

Incl. 06-31 - 06-37, If Used, -JEE0123289

1шт.

293101A1

AXLE

Incl. 06-31 - 06-37, If Used, JEE0123290-

1шт.

336580A1

DIFFERENTIAL

Incl. 1-17, Incl. Limited Slip Differential, See Figure 06-37 , Used With 313144A1

1шт.

384376A1

AXLE DIFFERENTIAL

Incl. 1-17, Incl. Limited Slip Differential, See Figure 06-37 - 0637, Used With 293101A1

1шт.

384376A1R

REMAN-AXLE DIFFERENT

REMANUFACTURED LIMITED SLIP DIFFERENTIAL AXLE - NA Only

1шт.

384376A1C

CORE-AXLE DIFF w/LTD

CORE-AXLE DIFF, w/LTD SLIP Return Number, LIMITED SLIP DIFFERENTIAL AXLE - NA Only

1шт.

1

121323A1

HOUSING

Used With 313144A1

1шт.

1a

384262A1

HOUSING

Used With 293101A1

1шт.

2

121340A1

ROLLER BEARING

Right Hand

1шт.

3

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

Left Hand

1шт.

4

119296A1

BLOCK

8,8 mm

1шт.

4

898117H1

RING, SNAP

RING SNAP 8,7 mm

1шт.

4

898456H1

RING, SNAP

RING SNAP 8,6 mm

1шт.

4

898451H1

SNAP RING

8,5 mm

1шт.

4

898446H1

RING, SNAP

RING SNAP 8,4 mm

1шт.

4

898441H1

RING, SNAP

RING SNAP 8,3 mm

1шт.

4

119301A1

BLOCK

8,9 mm

1шт.

4

119305A1

BLOCK

9,1 mm

1шт.

4

119309A1

BLOCK

9,2 mm

1шт.

4

119310A1

BLOCK

9,3 mm

1шт.

4

119311A1

BLOCK

9,4 mm

1шт.

5

121324A1

ROLLER BEARING

Front

1шт.

6

121325A1

ROLLER BEARING

Rear

1шт.

7

121343A1

NUT

2шт.

8

119318A1

SPLIT PIN/SAFETY PIN

8 x 45 mm, Used With 313144A1

2шт.

8a

838-5636

LOCK PIN,M6 x 36, Slotted

Used with 293101A1

2шт.

9

119315A1

SEAL

No Longer Used, Order 119315A2

1шт.

9

119315A2

SEAL

Replaces 119315A1

1шт.

10

119316A1

WASHER

1шт.

11

119323A1

WASHER

Used With 313144A1

1шт.

12

121328A1

WASHER

0,7 mm

1шт.

12

121329A1

WASHER

0,8 mm

1шт.

12

121331A1

WASHER

0,9 mm

1шт.

12

121334A1

WASHER

1,0 mm

1шт.

12

3217664R1

SHIM

1,2mm

1шт.

12

3217663R1

DISC

1,3 mm

1шт.

12

3217662R1

DISC

1,4 mm

1шт.

12

3217661R1

SHIM

1,5 mm

1шт.

12

3217660R1

SHIM

1,6 mm

1шт.

12

3217659R1

SHIM

1,7 mm

1шт.

12

3217658R1

SHIM

1,8 mm

1шт.

12

3217657R1

SHIM

1,9 mm

1шт.

12

3217656R1

SHIM

2,0 mm

1шт.

12

121342A1

WASHER

1,1 mm, Used With 313144A1

1шт.

13

121345A1

NUT

Used With 313144A1

1шт.

13

119317A1

NUT

Used With 293101A1

1шт.

14

121346A1

COUPLING FLANGE

Input

1шт.

15

119322A1

PROTECTOR

Used With 313144A1

1шт.

15

384273A1

SHIELD

Used With 293101A1

1шт.

336584A1

SET

Incl. 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft

1шт.

17

NSS

NOT SOLD SEPARAT

Gear

1шт.
