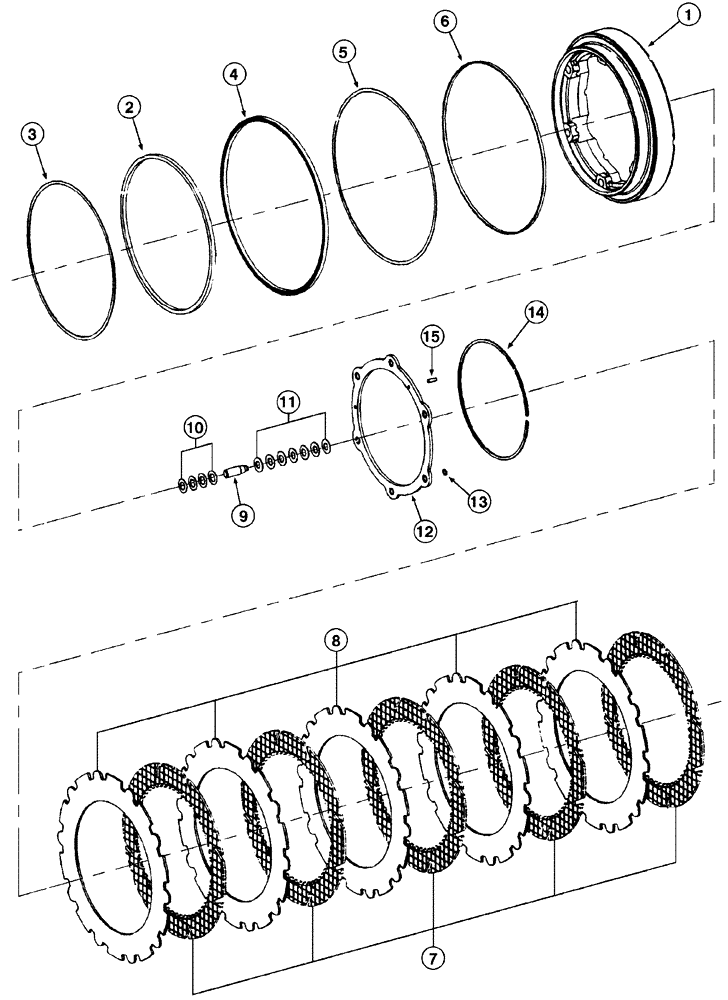

Запчасти Case 721C (06-35) - AXLE, REAR - HUB, DISC BRAKES JEE0123290- (06) - POWER TRAIN

293101A1

AXLE

Incl. 06-31 - 06-37, If Used, See Figure 06-33

1шт.

437380A1R

REMAN-WHEEL END ASSY

Remanufactured, North America Only

1шт.

437380A1C

CORE-WHEEL END ASSY

1шт.

437380A1

GEAR REDUCTION UNIT

Incl. 06-34, 1-23 - 06-35, 1-15

1шт.

1

8603165

PISTON

Brake; Replaces 384384A1; Also Order 8603162 Shim and 8603163 Pin

2шт.

2

384315A1

SEAL

2шт.

3

384317A1

RING

2шт.

4

384318A1

SEAL

2шт.

5

384319A1

RING

2шт.

6

384321A1

RING

2шт.

7

384322A1

BRAKE DISC

DISC, BRAKE Inner

8шт.

8

384323A1

BRAKE PLATE

Outer

8шт.

9

384324A1

PIN

12шт.

10

384325A1

RING

48шт.

11

384326A1

BELLEVILLE WASHER

84шт.

12

384327A1

SHIM

2шт.

13

P0436202H

RETAINER

12шт.

14

384328A1

RING, SNAP

RING SNAP

2шт.

15

8603796

ROLL PIN,6mm OD x 20mm L

Replaces 932470R1

6шт.
