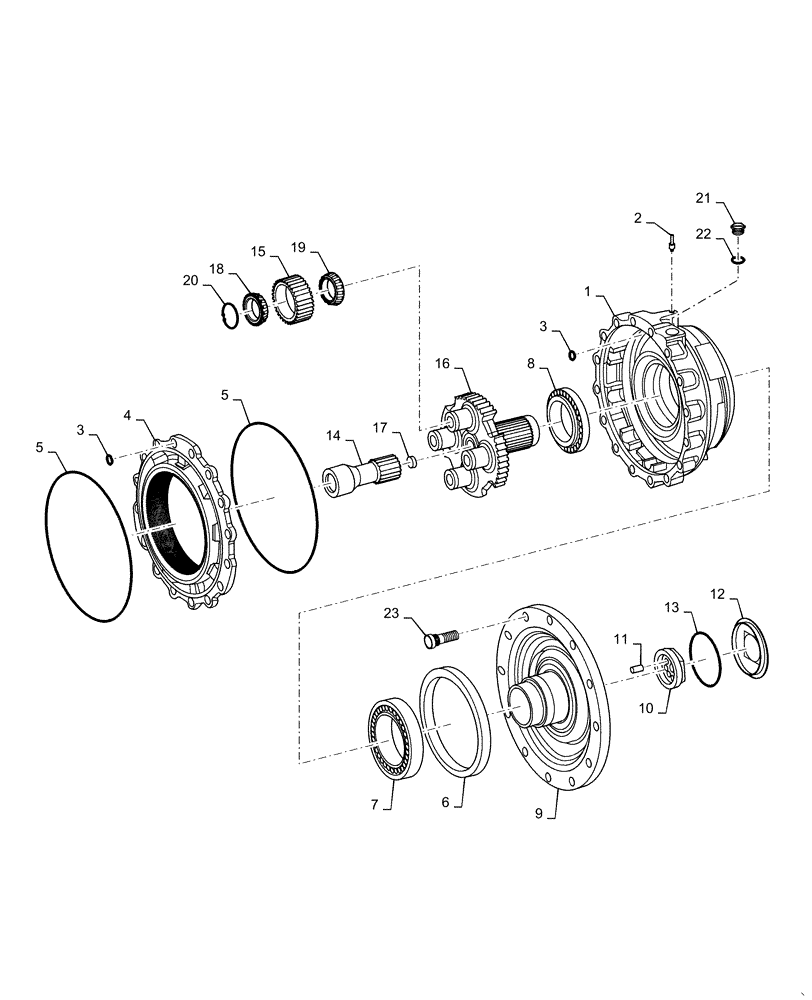

Запчасти Case 721C (06-34) - AXLE, REAR - HUB, PLANETARY JEE0123290- (06) - POWER TRAIN

293101A1

AXLE

Incl. 06-31 - 06-37, If Used, See Figure 06-33 - 06-33

1шт.

437380A1R

REMAN-WHEEL END ASSY

Remanufactured, North America Only

1шт.

437380A1C

CORE-WHEEL END ASSY

Return Number, AXLE - NA Only

1шт.

437380A1

GEAR REDUCTION UNIT

Incl. 06-34 , 1-23 - 06-35, 1-15

1шт.

1

384292A1

HOUSING

No Longer Used; Order 87437916

2шт.

1

87437916

HOUSING

2шт.

2

384293A1

PLUG

2шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

4шт.

4

384295A1

GEAR

No Longer Used; Order 8603560

2шт.

4

8603560

RING GEAR,Planetary Ring

2шт.

5

384296A1

O-RING

4шт.

6

384297A1

SEAL

2шт.

7

384298A1

TAPERED BEARING

2шт.

8

384299A1

BEARING, ROLLER

2шт.

9

384383A1

FLANGE

Output

2шт.

10

384301A1

NUT

2шт.

11

384302A1

PIN

2шт.

12

384303A1

COVER

2шт.

13

331982A1

O-RING

2шт.

14

384304A1

GEAR

Shaft

2шт.

15

384306A1

GEAR

Planetary

8шт.

16

384308A1

CARRIER

Planetary; No Longer Used; Order 87437907

2шт.

16

87437907

CARRIER

2шт.

17

384309A1

BOLT

2шт.

18

384310A1

ROLLER BEARING

Inner

8шт.

19

384311A1

ROLLER BEARING

Inner

8шт.

20

384312A1

RETAINER

8шт.

21

384313A1

PLUG

2шт.

22

A52097

O-RING,2mm Thk x 21mm ID

2шт.

23

123776A1

WHEEL BOLT

32шт.
