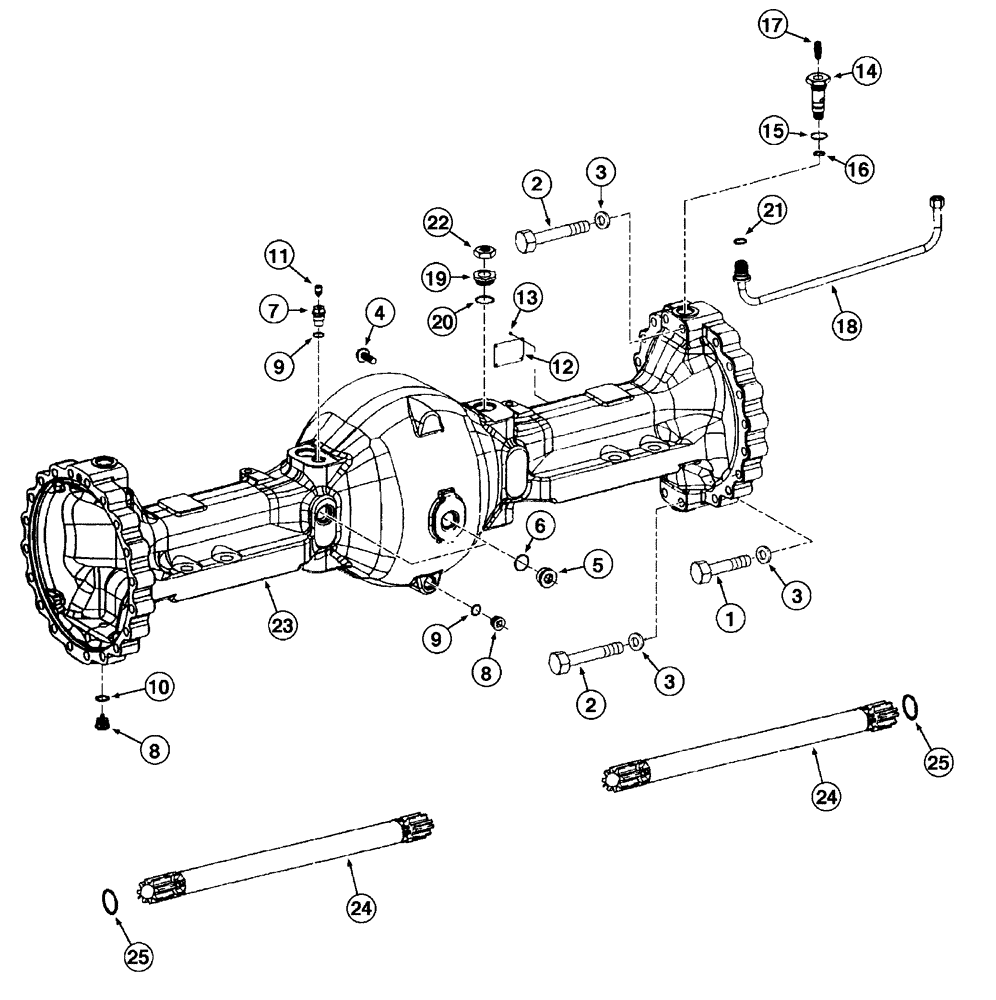

Запчасти Case 721C (06-32) - AXLE, REAR - HOUSING JEE0123290- (06) - POWER TRAIN

293101A1

AXLE

Incl. See Figure 06-31 - 06-37, If Used, See Figure 06-31

1шт.

1

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

28шт.

2

934957R1

BOLT

M18 x 105

4шт.

3

A48928

WASHER

32шт.

4

A52094

FLANGE BOLT

Differential To Axle Housing

12шт.

5

384280A1

PLUG

3шт.

6

81284C1

O-RING,2.2mm Thk x 33mm ID

3шт.

7

8603256

PLUG

1шт.

8

384281A1

PLUG

3шт.

9

A52097

O-RING,2mm Thk x 21mm ID

2шт.

10

A48812

SEALING RING,M24 x 29 x 1.5

2шт.

11

A48855

VALVE

1шт.

12

NSS

NOT SOLD SEPARAT

Plate

1шт.

13

932658R1

GROOVED PIN,Rd Hd, M3 x 5

4шт.

14

384282A1

FITTING

2шт.

15

81284C1

O-RING,2.2mm Thk x 33mm ID

2шт.

16

384283A1

FITTING

2шт.

17

3222214R1

VALVE

2шт.

18

384377A1

TUBE ASSY.

No Longer Used; Replaced By 87436732

2шт.

18

87436732

TUBE

Replaces 384377A1

2шт.

19

384285A1

UNION

2шт.

20

A52096

O-RING,2.5mm Thk x 38mm ID

2шт.

21

716582R1

O-RING

2шт.

22

384286A1

NUT

2шт.

23

384381A1

AXLE

1шт.

24

384382A1

AXLE SHAFT

2шт.

25

384290A1

SHIM

2шт.
