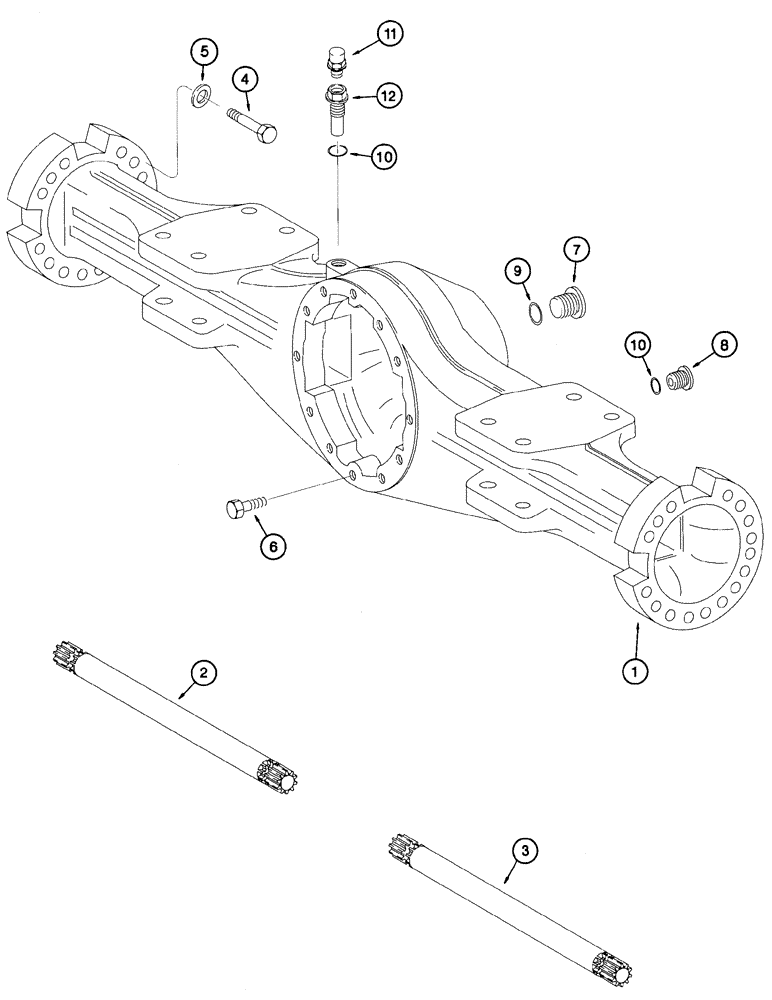

Запчасти Case 721C (06-31) - AXLE, REAR - HOUSING -JEE0123289 (06) - POWER TRAIN

313144A1

AXLE HOUSING

Incl. See Figure 06-32 - 06-37

1шт.

1

308838A1

HOUSING

1шт.

2

121400A1

SHAFT

1006 mm

1шт.

3

124168A1

SHAFT

1028 mm

1шт.

4

308829A1

BOLT,Hex, M20 x 1.5 x 75mm, Grade 10.9

M20 x 75; 10.9

32шт.

5

119381A1

BEARING WASHER

32шт.

6

A52094

FLANGE BOLT

Differential To Axle Housing

8шт.

6

3404789R1

SCREW

Differential To Axle Housing

4шт.

7

A48791

PLUG

42 mm

1шт.

8

119349A1

PLUG

1шт.

9

A52372

O-RING,2.5mm Thk x 38mm ID

Large

1шт.

10

A52097

O-RING,2mm Thk x 21mm ID

Small

2шт.

11

8603256

PLUG

Special

1шт.

12

A48855

VALVE

1шт.
