(06-30) - AXLE, FRONT - DIFFERENTIAL, JEE0123290-

Запчасти Case 721C (06-30) - AXLE, FRONT - DIFFERENTIAL, JEE0123290- (06) - POWER TRAIN

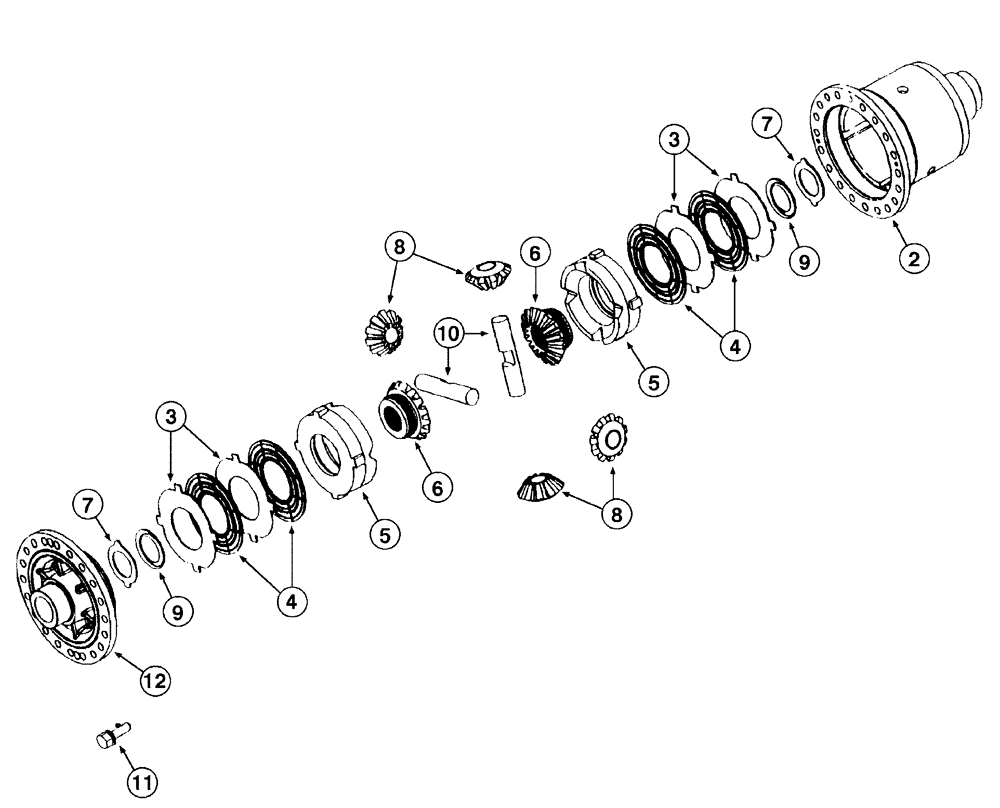

Схема запчастей Case 721C - (06-30) - AXLE, FRONT - DIFFERENTIAL, JEE0123290- (06) - POWER TRAIN
7
11
8
4
6
12
3
3
2
5
4
10
9
7
5
8
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

293100A1

AXLE

Incl. See Figure 06-23 - 06-30, If Used, See Figure 06-29 - 06-29

1шт.

384385A1

AXLE DIFFERENTIAL

Incl. 06-28 - 06-30

1шт.

384385A1R

REMAN-AXLE DIF w/LTD

CORE-AXLE DIFF, w/LTD SLIP REMANUFACTURED AXLE DIFFERENTIAL

1шт.

384385A1C

CORE-AXLE

Return Number

1шт.

385371A1

DIFFERENTIAL ASSY

Incl. 2-12, Limited Slip

1шт.

2

384394A1

AXLE DIFFERENTIAL

1шт.

3

384388A1

CLUTCH DISC

CLUTCH DISK 2,9 mm, Outer

1шт.

3

384389A1

CLUTCH DISC

CLUTCH DISK 3,0 mm, Outer

1шт.

3

384390A1

CLUTCH DISC

CLUTCH DISK 3,1 mm, Outer

1шт.

4

A52023

PLATE

Inner

4шт.

5

384397A1

RING

2шт.

6

384399A1

GEAR

Side

2шт.

7

384393A1

SHIM

2шт.

8

A52037

GEAR WHEEL

Pinion

4шт.

9

384392A1

THRUST WASHER

2шт.

10

384396A1

SHAFT

Pinion

2шт.

11

184725A1

BOLT

12шт.

12

384395A1

COVER

1шт.
