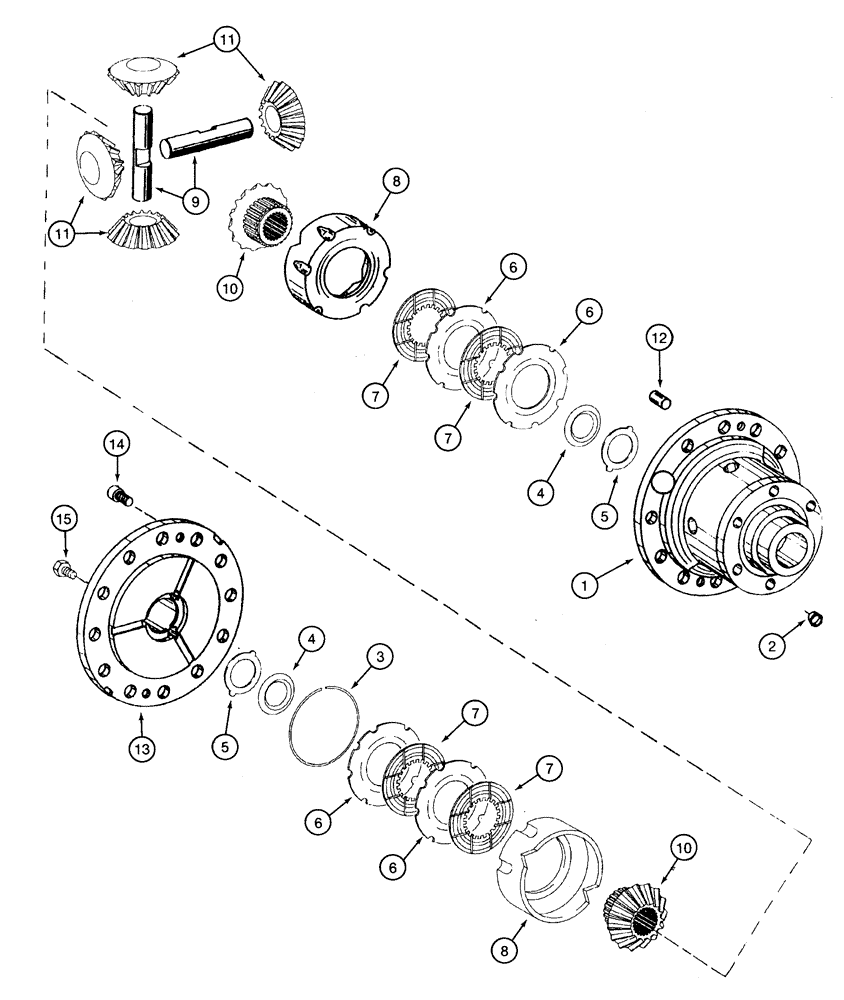

Запчасти Case 721C (06-29) - AXLE, FRONT - DIFFERENTIAL -JEE0123289 (06) - POWER TRAIN

313143A1

AXLE HOUSING

Incl. See Figure 06-23 - 06-29, If Used, See Figure 06-30

1шт.

336579A1

DIFFERENTIAL

Incl. 06-28 - 06-30, Used With 313143A1

1шт.

184721A1

DIFFERENTIAL

Incl. 1-15, Limited Slip, Used With 313143A1

1шт.

1

184722A1

HOUSING

1шт.

2

177715A1

SEAL

6шт.

3

119329A1

RING, SNAP

RING SNAP

1шт.

4

119330A1

THRUST WASHER

Inner

2шт.

5

242180A1

THRUST WASHER

Outer

2шт.

6

230548A1

THRUST WASHER

1шт.

6

230549A1

DISC

2,4 mm, Outer

1шт.

6

230550A1

DISC

2,3 mm, Outer

1шт.

6

230551A1

DISC

2,5 mm, Outer

1шт.

7

177732A1

DISC

Inner

4шт.

313143A1

AXLE HOUSING

Incl. See Figure 06-23 - 06-29, If Used, See Figure 06-30

1шт.

336579A1

DIFFERENTIAL

Incl. See Figure 06-28 - 06-30, Used With 313143A1

1шт.

184721A1

DIFFERENTIAL

Incl. 1-15, Limited Slip, Used With 313143A1

1шт.

8

119337A1

RING, SNAP

RING SNAP

2шт.

9

119338A1

SHAFT

Pinion

2шт.

10

119339A1

PINION

16T, Side

2шт.

11

119340A1

PINION

11T, Pinion

4шт.

12

119341A1

PIN

12шт.

13

184724A1

COVER

1шт.

14

193152A1

BOLT

2шт.

15

184725A1

BOLT

Housing Cover

12шт.
