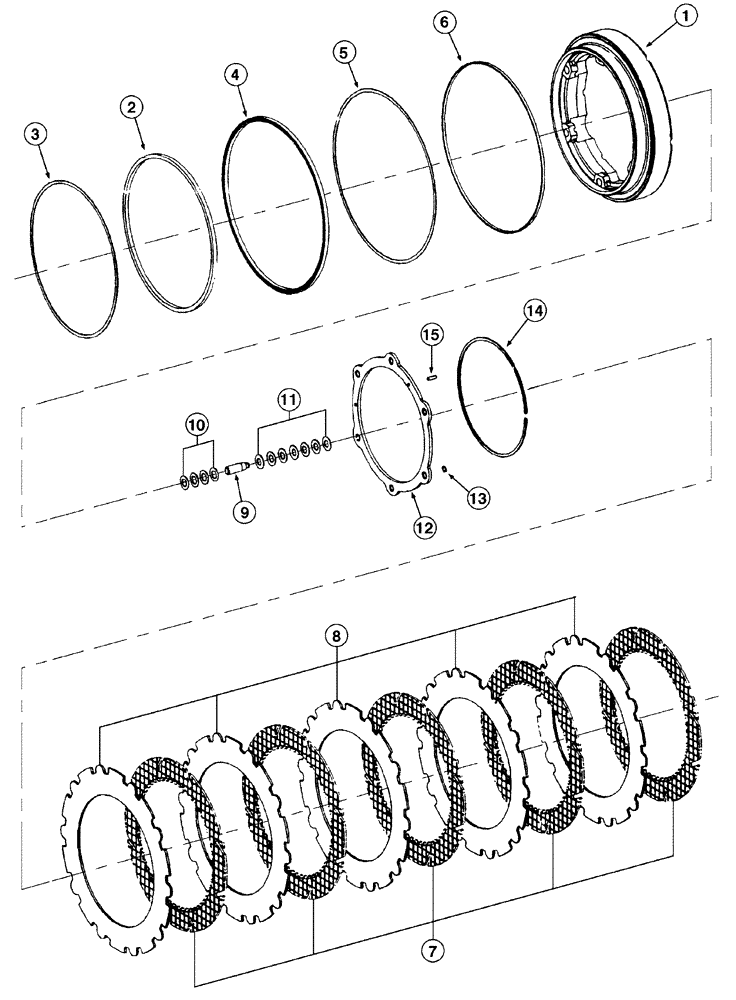

Запчасти Case 721C (06-27) - AXLE, FRONT - HUB, DISC BRAKES, JEE0123290- (06) - POWER TRAIN

293100A1

AXLE

Incl. 06-23 - 06-30, If Used, See Figure 06-25 - 06-25

1шт.

437377A1

GEAR REDUCTION UNIT

Incl. 06-26, 1-23 - 06-27, 1-15

1шт.

437377A1R

REMAN-WHEEL END ASSY

Remanufactured

1шт.

437377A1C

CORE-WHEEL END ASSY

Return Number

1шт.

1

384314A1

PISTON

Brake

2шт.

2

384315A1

SEAL

2шт.

3

384317A1

RING

2шт.

4

384318A1

SEAL

2шт.

5

384319A1

RING

2шт.

6

384321A1

RING

2шт.

7

384322A1

BRAKE DISC

DISC, BRAKE Inner

8шт.

8

384323A1

BRAKE PLATE

Outer

8шт.

9

384324A1

PIN

12шт.

10

384325A1

RING

48шт.

11

384326A1

BELLEVILLE WASHER

84шт.

12

384327A1

SHIM

2шт.

13

8603788

SNAP RING

Replaces P0436202H

12шт.

14

384328A1

RING, SNAP

RING SNAP

2шт.

15

932430R1

RIVET

6шт.
