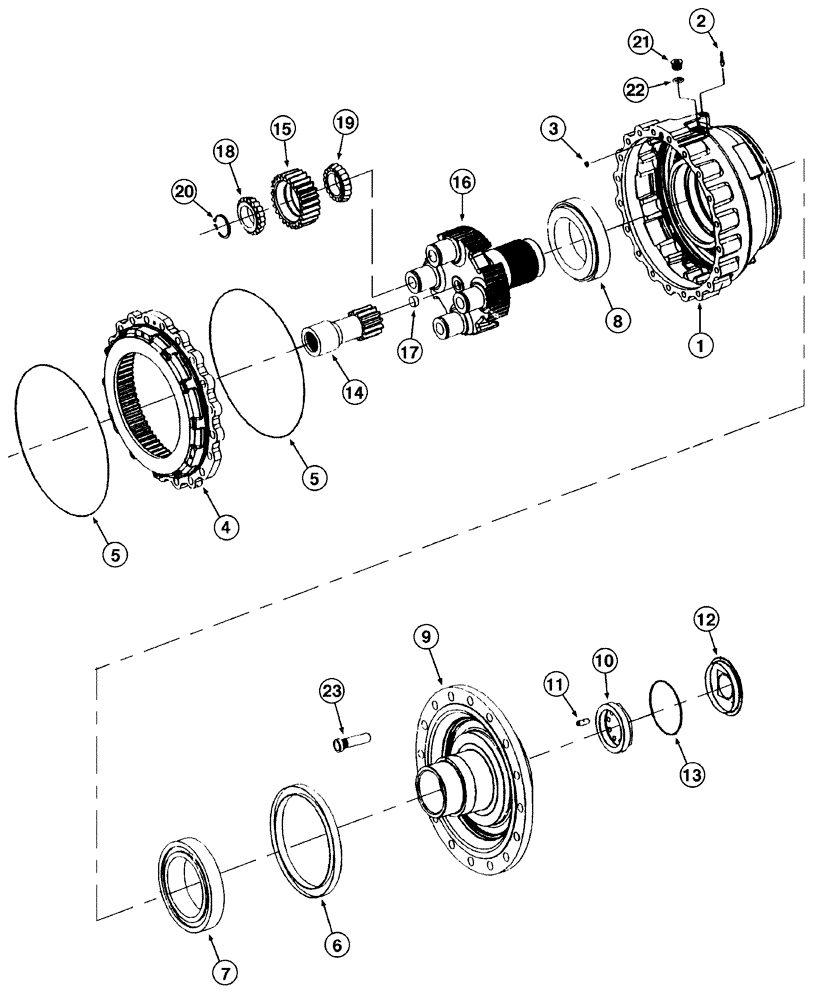

Запчасти Case 721C (06-26) - AXLE, FRONT - HUB, PLANETARY, JEE0123290- (06) - POWER TRAIN

293100A1

AXLE

Incl. 6-61 - 6-73D, If Used, See Figure 06-25 -06-25

1шт.

437377A1

GEAR REDUCTION UNIT

Incl. See Figure 06-26, 1-23 - 06-27, 1-15

1шт.

437377A1R

REMAN-WHEEL END ASSY

Remanufactured

1шт.

437377A1C

CORE-WHEEL END ASSY

Return Number

1шт.

1

384409A1

HOUSING

No Longer Used; Order 87437915

2шт.

1

87437915

HOUSING

2шт.

2

384293A1

PLUG

2шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

4шт.

4

384410A1

GEAR

No Longer Used; Order 8603610

2шт.

4

8603610

GEAR

2шт.

5

384296A1

O-RING

4шт.

6

384297A1

SEAL

2шт.

7

384411A1

TAPERED BEARING

No Longer Used; Order 8603611

2шт.

7

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

2шт.

8

384412A1

BEARING, ROLLER

No Longer Used; Order 8603612

2шт.

8

8603612

ROLLER BEARING

2шт.

9

384414A1

FLANGE

Output; No Longer Used; Order 8605318

2шт.

9

8605318

FLANGE

2шт.

10

384301A1

NUT

2шт.

11

384302A1

PIN

2шт.

12

384303A1

COVER

2шт.

13

331982A1

O-RING

2шт.

14

384416A1

GEAR

Shaft

2шт.

15

384417A1

GEAR

Planetary

6шт.

16

384418A1

CARRIER

Planetary; No Longer Used; Order 87437909

2шт.

16

87437909

PLANET CARRIER

2шт.

17

384309A1

BOLT

2шт.

18

384419A1

ROLLER BEARING

Inner

6шт.

19

384420A1

ROLLER BEARING

Inner

6шт.

20

898183H1

RETAINER

6шт.

21

384313A1

PLUG

2шт.

22

A52097

O-RING,2mm Thk x 21mm ID

2шт.

23

123776A1

WHEEL BOLT

32шт.
